Automotive cabin, floor mat scanning solutions

With China's arrival as the world's largest auto market, car modification has become a topic of interest to all car owners. Our company Huaguang 3D recently cooperated with a large domestic auto company through the use of 3D digital technology for Ford. Automobiles (the latest in 2018) are retrofitted to meet the market demand and increase the competitiveness of enterprises.

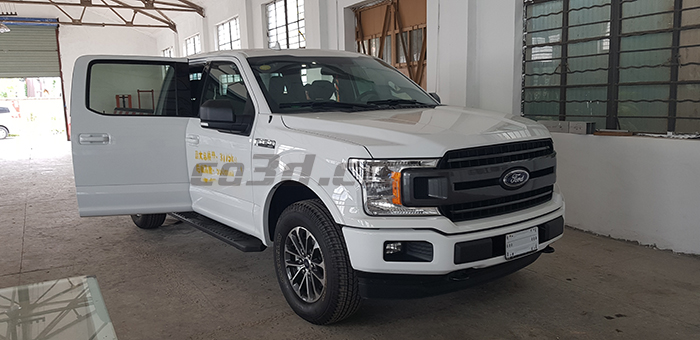

Ford car scene physical map

Practical problems

The scan is divided into two parts: car compartment scanning, car interior pad scanning.

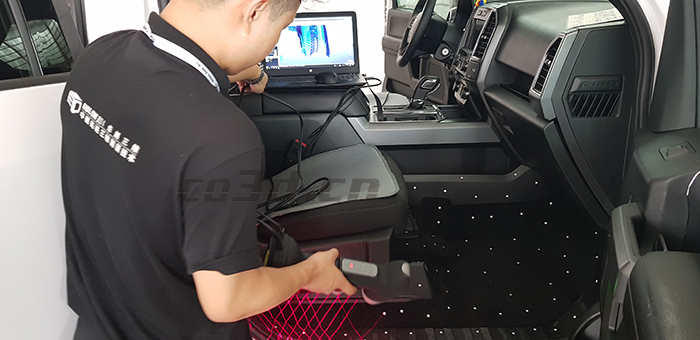

Ford car interior scanning site

　　Due to the large size of the Ford car (the whole car is about 4 meters long and the car is nearly 2 meters) and the scanning space of the car interior is narrow, the scanning difficulty is difficult. The customer requires fast and accurate scanning of the three-dimensional data of the car compartment and the foot pad and can not be sprayed. The imaging agent, the traditional scanning method is inefficient and cannot completely obtain the three-dimensional data of the car compartment of nearly 2 meters, and the scanning of the inner compartment of the automobile has many limitations. The traditional measurement method cannot achieve the expected effect and cannot meet the customer's demand.

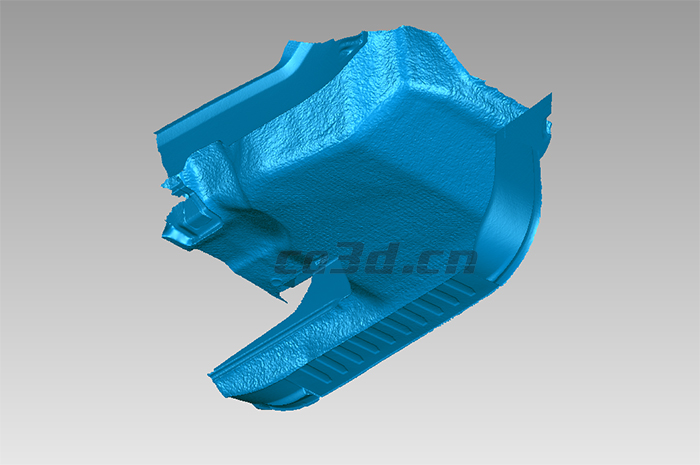

Ford car mat STL data map

CO3D solutions

　　Ford's large size, the car scanning nearly 2 meters and the narrow scanning space of the car interior increases the difficulty of scanning. In order to effectively control the global cumulative error and scanning efficiency of 3D scanning, Huaguang 3D uses a targeted solution, using a handheld 3D scanner. HOLON760 completes the scanning of the car compartment and the inner compartment of the car. The scanning speed is fast and the precision is high. It effectively solves all the difficulties. This scan exceeds the expected result of the customer. It is very satisfied with this measurement, and it is the subsequent car modification and precision assembly test. Strive for more project time.

Scanning equipment:

   Handheld 3D scanner HOLON760

HOLON760 is a portable laser handheld 3D scanner independently developed by Huaguang 3D, which has the following advantages:

◆ Ultra-portable, the weight of the body is only 0.87kg;

◆ Accuracy up to 0.020mm, resolution up to 0.050mm;

◆ Adapt to the measurement tasks of various complex environments such as indoors and outdoors;

◆ High speed scanning: 480,000 measurements / sec;

◆ The measuring space is large and the stability is good, and the large workpiece can be measured by a single machine;

◆ Almost unlimited 3D scanning, independent of object size, material, color, etc.;

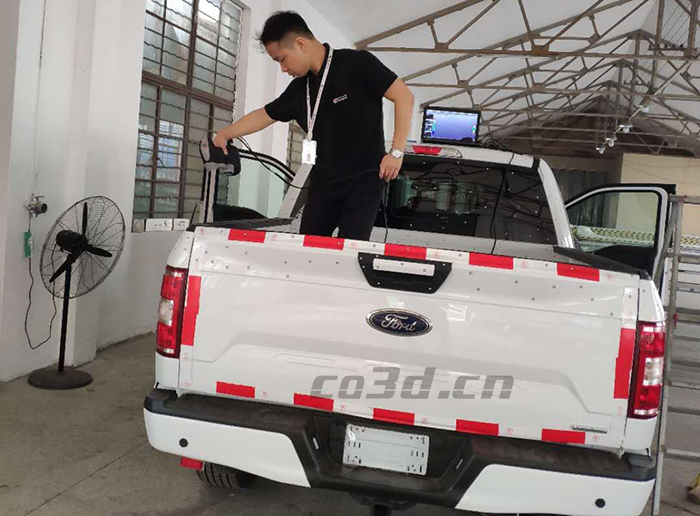

Ford car compartment scanning scene

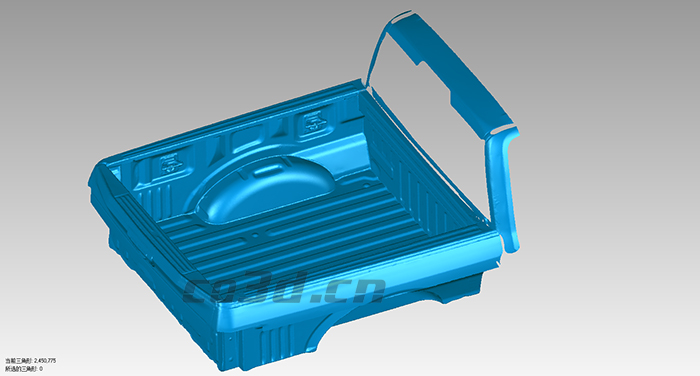

Ford car compartment STL data map

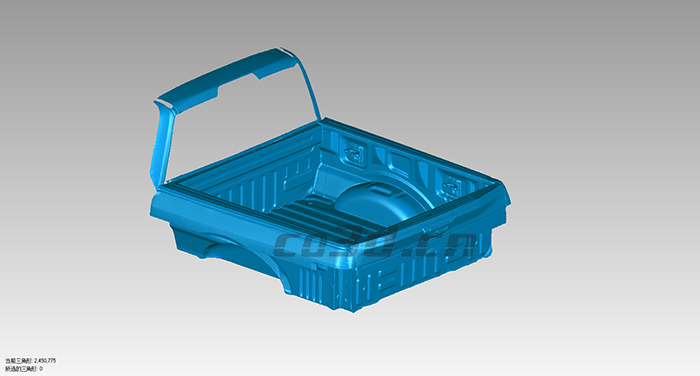

Ford car compartment STL data map
