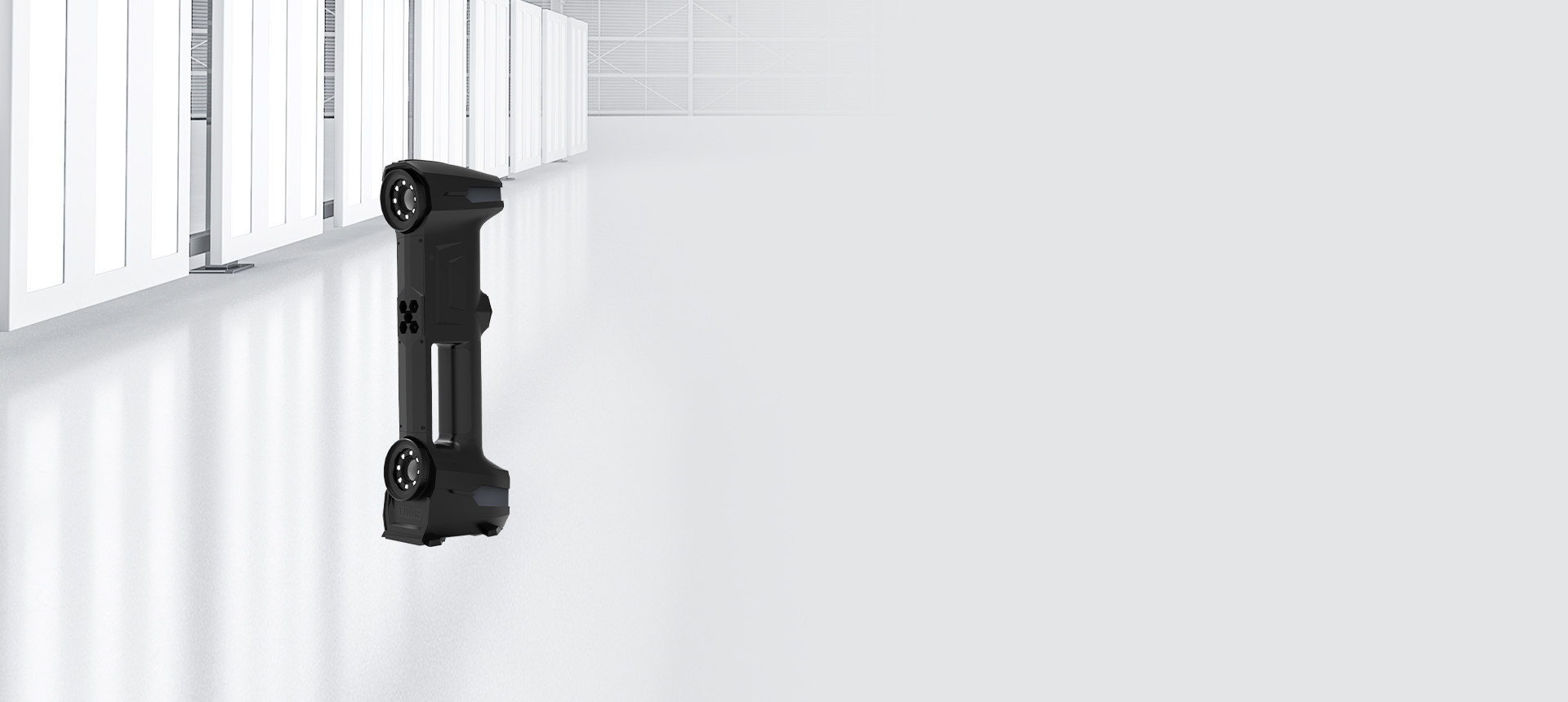

Thorscan R_Large 3D scanner_Introduction and Technical Parameters

Thorscan R

Large Industrial 3D scanner

The automated 3D online inspection system acquires product contour data through optical non-contact scanning using laser sensors, and transmits real-time data to the processing unit. Through the processing unit's decision-making, it adjusts the control unit to achieve online adjustments and optimize results. Consequently, 3D online inspection can effortlessly facilitate the screening of defective products and sorting of product types, akin to equipping the production line and robotic arms with a pair of eyes, thereby enhancing production efficiency and yield rates.

Back to list

Product features

Large scanning area

A single scanning area is 2000mm×2000mm, and the work efficiency is increased by 5-60 times.

Scan fast

Scanning speed 4,000,000points/s

Scanning of large workpieces

The number of marking points is halved, making it easy to handle large workpieces

Wide range of applications

Not affected by the environment, adapts to various complex application scenarios, and has good adaptability

Specification parameters

Model		Thorscan R
Light-source		45 blue laser lines (wavelength: 850nm)
Measurement Rate		4,000,000points/s
Scan mode	Large Area Mode	22 crossed blue laser lines
	Standard Mode
	Precision mode	22 crossed blue laser lines
	Deep hole mode	1 crossed blue laser lines
Data precision		0.05mm+0.05mm/m
Scanning distance		1200mm；1700mm
Scan depth of field		650mm；900mm
Resolution		0.05mm(max)
Scanning area（+Periscope）		1000mm×1000mm；2000×2000mm（max）
Scanning range		0.1-50 m (expandable)
Volume precision		0.05+0.05mm/m
		0.05 + 0.015mm / m combined with HL-3DP three-dimensional global photogrammetry system ( optional )
Operating software		HLScanner ( Lifetime Free Upgrade )
Support data format		asc, stl, ply, obj, igs, wrl, xyz, txt, etc., can be customized
Compatible software		3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) etc.
Data transmission		USB3.0
Laser safety level		Class II ( eye safety )
		Laser certificate : LCS200726001DS
Installation weight		0.8kg
Overall dimension		406x84x136mm
Paleotemperature/humidity		-10—40℃；10-90%
Power supply		Input:100-240v,50/60Hz,0.9-0.45A；Output:24V,1.5A,36W(max)
Certification		CE、IC、FCC、ROHS、ISO9001
Patent		ZL201220386542.3，ZL201220386546.1，ZL201520174157.6，ZL201721695684.7，ZL201520174106.3，ZL201420058854.0，ZL201721376035.0，ZL201330658475.6，ZL201130007136.2，ZL201130007145.1，ZL201130007141.3，ZL201720362488.1， ZL201720349729.9，ZL201720362493.2，ZL201720369852.7， ZL201720369914.4，ZL201720369921.4，ZL2021102492208.4。


Warranty period		24 months

Flexible operation

Compact appearance, flexible and portable, easy to carry, ready to use, easy to operate
