Smart 41_Small 3D scanner_Introduction and Technical Parameters

Smart 41

Small Industrial 3D scanner

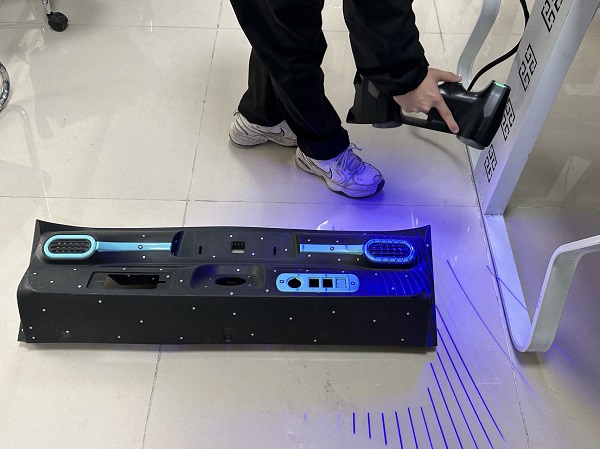

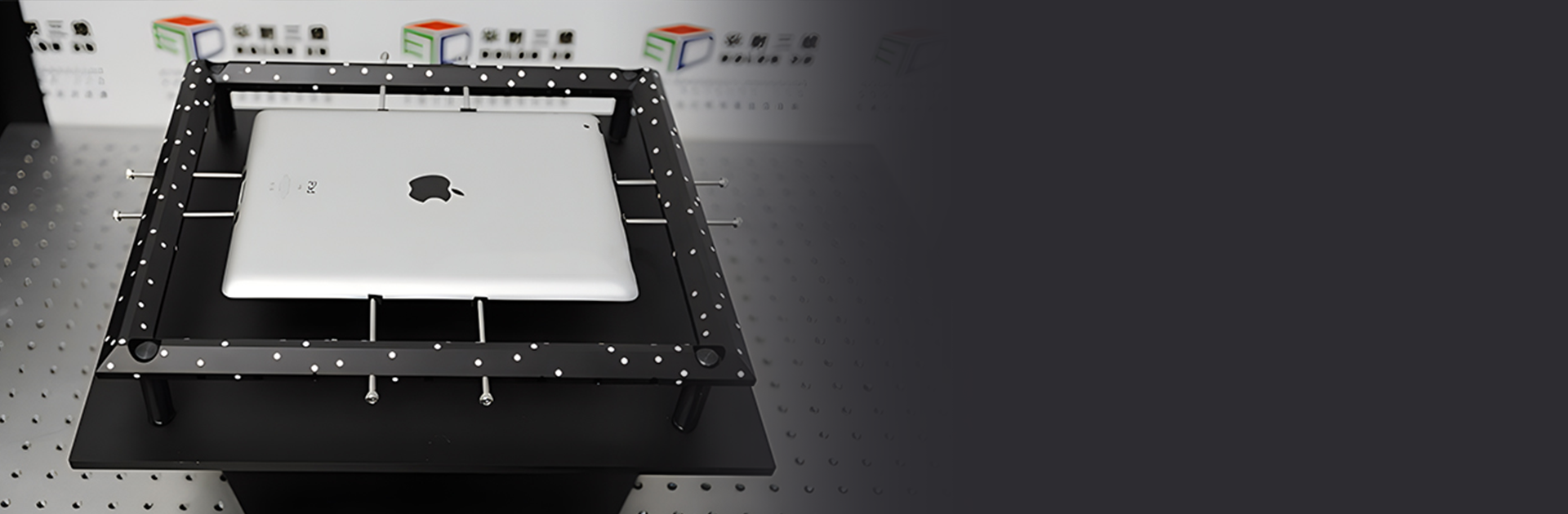

Smart 41 has a total of 41 blue laser lines, using 26 crossed blue laser lines for wide range mode, standard mode + 14 crossed blue laser lines for precision mode + 1 blue laser line for deep hole scanning; Miniaturized design, not restricted by the on-site environment, flexible and portable, adaptable to a variety of working conditions, and can be measured anytime and anywhere.

Back to list

Product features

Miniaturized design

Weight 0.6kg, used for narrow area scanning

Ultra-fast scanning speed

Scan rate 2,57,0000points/s

Hole position identification function

Accurately identify the installation hole positions on the workpiece, and extract a large number of hole positions in the same batch to improve the hole position measurement efficiency

Multi-mode scanning

Large-area mode and standard mode scan quickly and efficiently; precision scanning restores the fine features of the object surface with high precision; deep hole mode scans deep holes and dead corners

Specification parameters

Model	Smart 41
Light source	41 blue laser lines (wavelength: 450nm)
Measurement Rate	2,570,000points/s
Scan mode	Wide-Range mode	Standard mode	Precision mode	Deep hole mode
	26 crossed blue laser lines		14 crossed blue laser lines	1 blue laser line
Data precision	0.02mm		0.01mm	0.02mm
Scanning distance	370mm		200mm	370mm
Scan depth of field	550mm		200mm	550mm
Resolution	0.01mm(max)
Scanning area	600X550mm
Scanning range	0.1-10 m(expandable)
Volume Accuracy (Photogrammetry)	0.02+0.03mm/m
	Accuracy of 0.02+0.015mm/m when integrated with a Global 3D Photogrammetry System
Operating software	HLScan (free lifetime upgrade)
Data formats	asc, stl, ply, obj, igs, wrl, xyz, txt, etc., can be customized
Compatible software	3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) wait
Data transmission	USB 3.0
Computer configuration (optional)）	Win10 64-bit; video memory: 4G or above; processor: I7-13700 and above; memory: 64 GB
Laser safety level	ClassⅡ (eye safety)
	Certification number (Laser certificate): LCS200726001DS
Weight	730g
Size	222 X 104 X 61mm
Temperature/ humidity	-10—40℃；10-90%
Power supply	Input:100-240v,50/60Hz,0.9-0.45A；Output:24V,1.5A,36W(max)
Certification	CE、IC、FCC、ROHS、ISO9001
Patent	ZL201220386542.3，ZL201220386546.1，ZL201520174157.6，ZL201721695684.7，ZL201520174106.3，ZL201420058854.0，ZL201721376035.0，ZL201330658475.6，ZL201130007136.2，ZL201130007145.1，ZL201130007141.3，ZL201720362488.1，ZL201720349729.9，ZL201720362493.2，ZL201720369852.7，ZL201720369914.4，ZL201720369921.4，ZL2021102492208.4
Warranty Period	24 months

Smart 41

Small 3D scanner, narrow area scanning
