Scan cobot H

Automated Industrial 3D scanning system

The automated three-dimensional online inspection system obtains the product's profile data through optical non-contact scanning with a laser sensor, and transmits the real-time data to the processing unit. Through the decision-making of the processing unit, the control unit is adjusted to achieve online adjustments to optimize the results. Therefore, three-dimensional online inspection can also easily realize the screening of defective products and the sorting of product types. It is like adding a pair of eyes to the production line and robotic arm, improving product production efficiency and qualification rate.

Back to list

Product features

Blue light scanning technology

The 3D online inspection system uses blue light 3D scanning technology, which can effectively prevent metal reflection and help improve scanning quality.

Safe operation performance

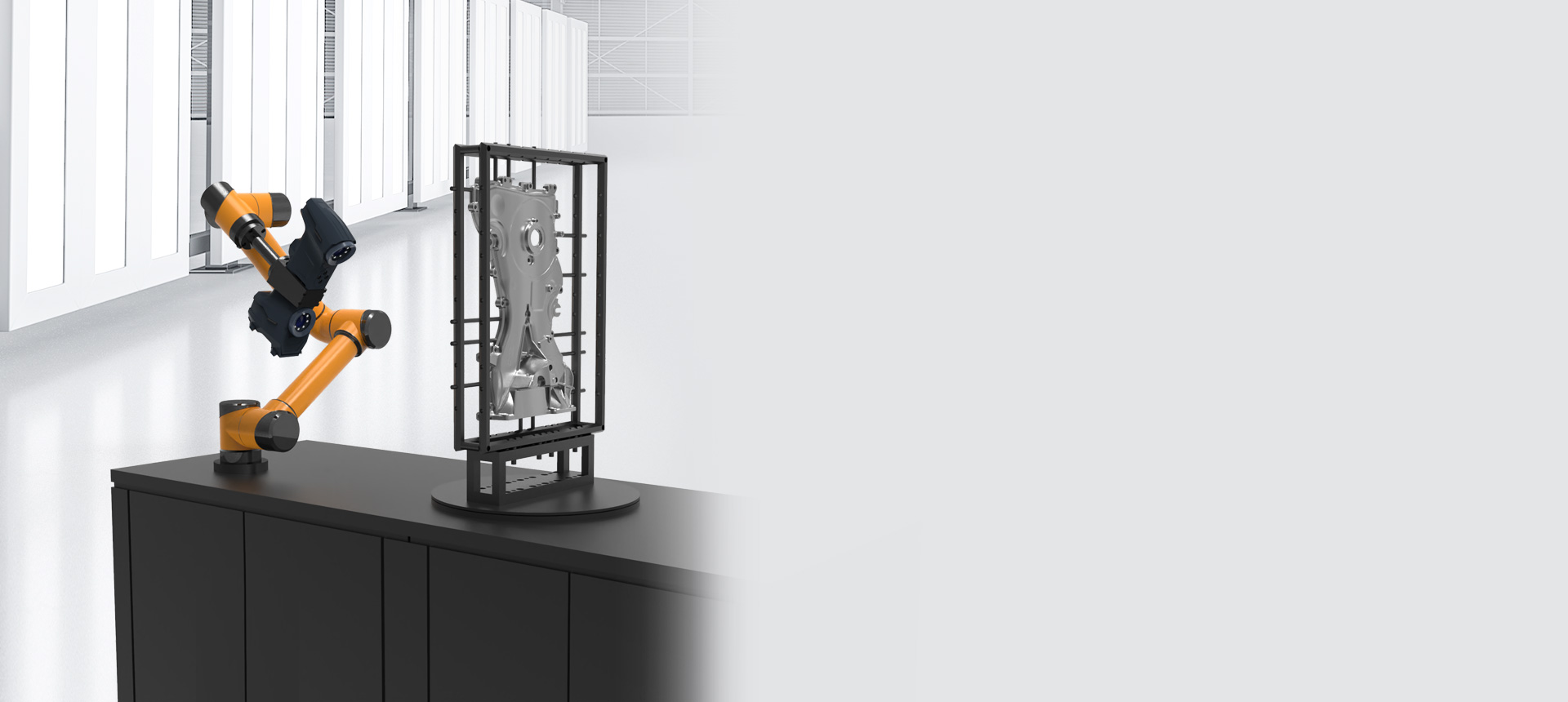

Human-machine collaborative robot, no need for guardrails, easy and convenient to operate

Full-scale 3D inspection

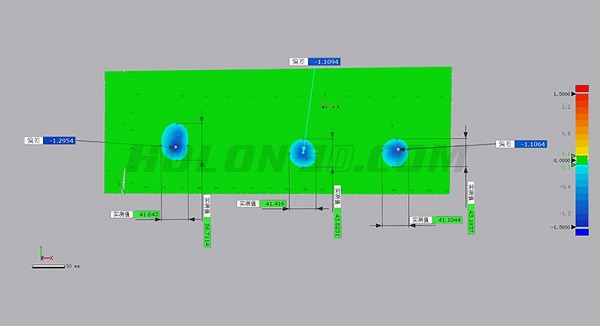

3D scanning obtains complete point cloud data of the workpiece, making full-scale inspection possible

High-precision data

Accuracy up to 0.01mm, strong anti-interference ability

Specification parameters

Model	Scan cobot H
Light source	37 blue laser lines (wavelength: 450nm)
Measurement Rate	2,070,000points/s
Scan mode	Wide-Range mode	Standard mode	Precision mode	Deep hole mode
	22 crossed blue laser lines		14 crossed blue laser lines	1 blue laser line
Data accuracy	0.02mm		0.01mm	0.02mm
Scanning distance	330m		180mm	330mm
Scan depth of field	550mm		200mm	550mm
Resolution	0.01mm(max)
Scanning area	600X550mm(max)
Scanning range	0.1-10 m(expandable)
Volume precision	0.02+0.03mm/m
	0.02+0.015mm/m combined with HL-3DP three-dimensional global photogrammetry system (optional)
Operating software	HLScan (free lifetime upgrade)
Data formats	asc, stl, ply, obj, igs, wrl, xyz, txt, etc., can be customized
Compatible software	3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) wait
Data transmission	USB 3.0
Computer configuration (optional)	Win10 64-bit; video memory: 4G or above; processor: I7-13700 and above; memory: 64 GB
Laser safety level	ClassⅡ (eye safety)
	Certification number (Laser certificate): LCS200726001DS
Weight	0.92Kg
Size	310x80x139mm
Temperature/ humidity	-10—40℃；10-90%
Power supply	Input:100-240v,50/60Hz,0.9-0.45A；Output:24V,1.5A,36W(max)
Certification	CE、IC、FCC、ROHS、ISO9001
Patent	ZL201220386542.3，ZL201220386546.1，ZL201520174157.6，ZL201721695684.7，ZL201520174106.3，ZL201420058854.0，ZL201721376035.0，ZL201330658475.6，ZL201130007136.2，ZL201130007145.1，ZL201130007141.3，ZL201720362488.1，ZL201720349729.9，ZL201720362493.2，ZL201720369852.7，ZL201720369914.4，ZL201720369921.4，ZL2021102492208.4
Warranty Period	24 months
