3D scanning scheme of elephant woodcarving

Release time：2024-07-25 Views：137

3D scanning scheme of elephant woodcarving

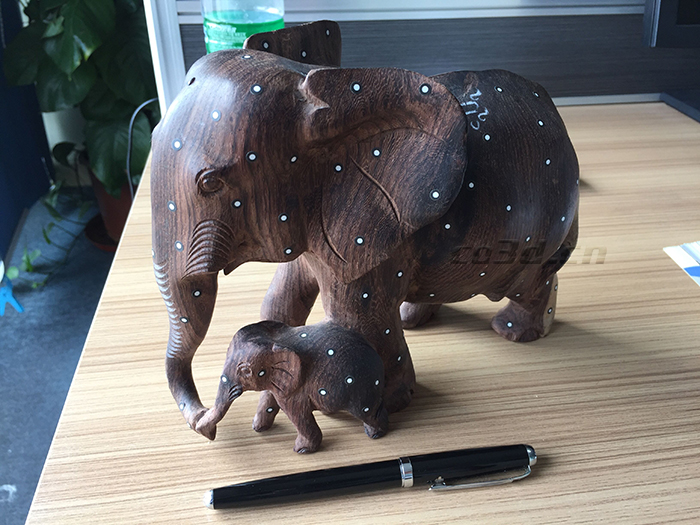

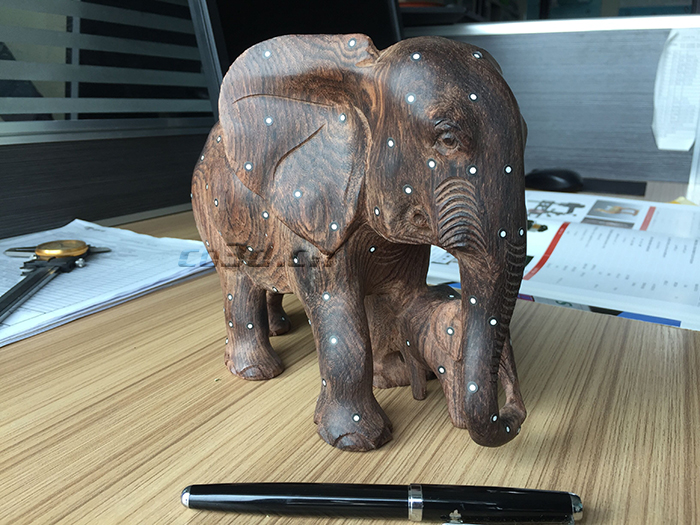

Thailand has the reputation of 'the country of all phenomena'. Elephants are Thailand's national treasure and the patron saint of the Thai people. Southeast Asia is unique in elephant carving art. Artificial carving is time-consuming and time-consuming, and the process is complex, which can not meet the market demand. Customers hope to obtain the three-dimensional data of elephant woodcarving through three-dimensional scanner, and directly process it through precision carving machine, so as to realize the mass production of woodcarving.

Facing problems

Practical problems

1. The woodcarving of Myanmar and Thailand is different from the folk carving of the Han nationality in China. The elephant woodcarving has many fine patterns and vivid and complex expressions. It is very difficult for ordinary precision three-dimensional measuring equipment to obtain all complete data in a short time, and the operation is time-consuming and laborious. Invisibly prolonged working hours.

2. The traditional processing method needs the sculptor to complete the whole work one by one. The manufacturing speed is slow and the cost of manpower is high. It can not meet the needs of customers, nor is it suitable for the rapid development of the company and the needs of market competition.

Solution

Co3d solutions

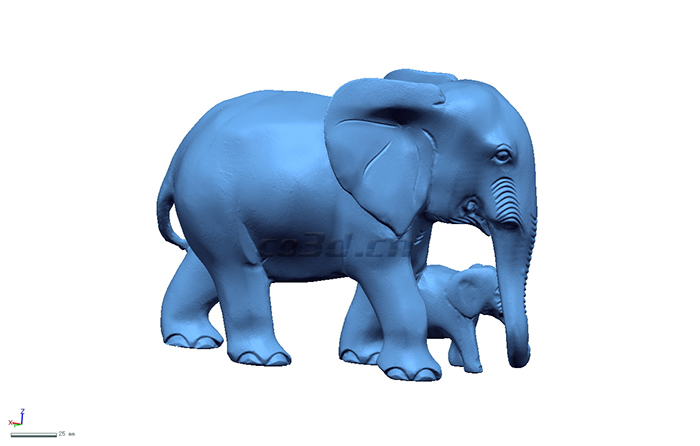

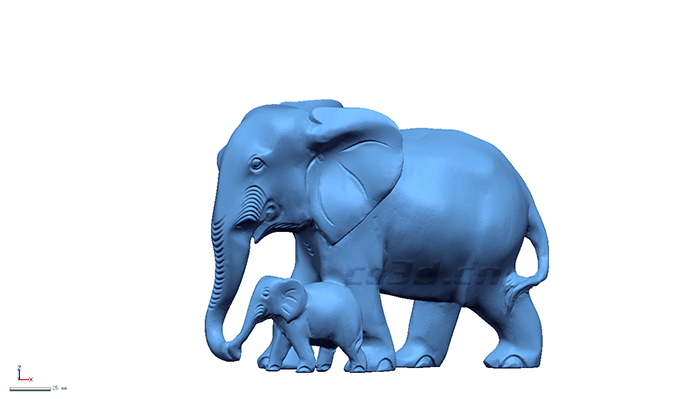

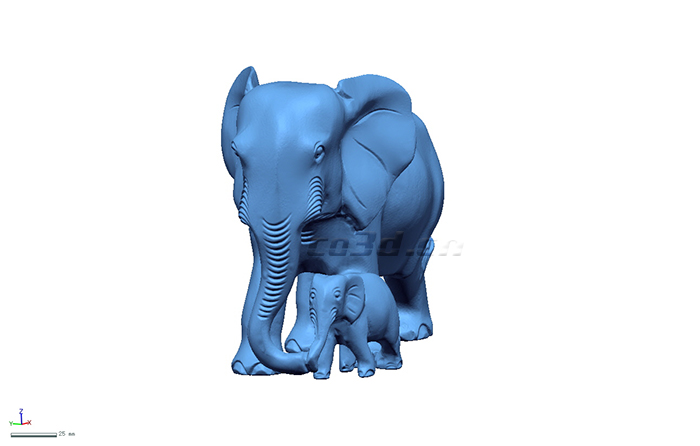

Customers hope to seek new carving processing methods, speed up the production of elephant woodcarving, to achieve mass production of woodcarving. After understanding the actual situation of customers, Hualang 3D Engineer provides HL-3DX (fast acquisition of high-precision three-dimensional data of elephant woodcarving)+reverse design software Geomagic Studio (conversion of point cloud data into triangular mesh data)+engraving programming software (compiling the tool path of nuclear engraving) to realize mass production of nuclear engraving. Yield.

The improvement of production efficiency brought by the new manufacturing scheme for customers is obvious. Using HL-3DX scanner and fine carving machine to replace the previous pure manual carving can not only produce the desired crafts quickly, but also extract the nuclear Carver from the repeated trivial work for a higher level. Grinding, creativity and other work, not only improve product output efficiency and cycle, but also make wood carving crafts to further improve the quality of completion, reduce excessive dependence on manual technology, reduce labor costs.
