A manufacturer needs to perform a three-dimensional scanning of the foamed film for comparison, to adapt to the development of the society, and make better improvements in order to accelerate the production of later models. We find that our company uses new scanning equipment to scan to obtain high-precision 3D data, which can solve the problems that customers currently face, improve quality, increase production, expand the market, develop new customers, and cooperate with long-term customers for a long time.

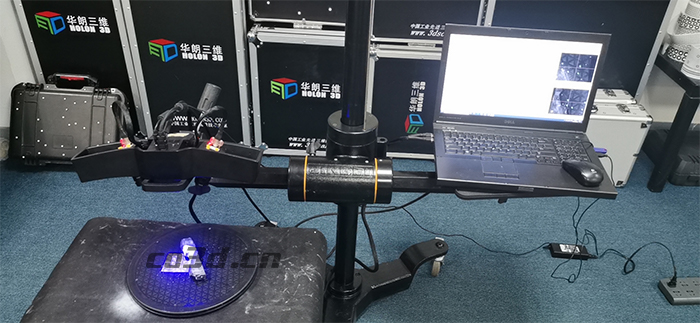

Scanning scene of foam film

Practical problems

The surface of the sample that the customer needs to scan is irregular and uneven, and the details need to be scanned completely. The groove part is reflected, and the device needs to have a strong capture ability.

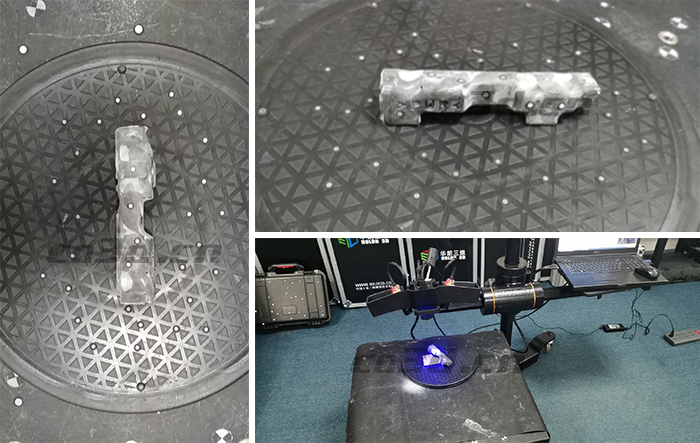

Scanning scene of foam film

Traditional scanners have slow scanning speeds, low efficiency, and low scanning accuracy. They cannot completely solve the problems faced by customers, which is time-consuming and labor-intensive, and is not a good choice.

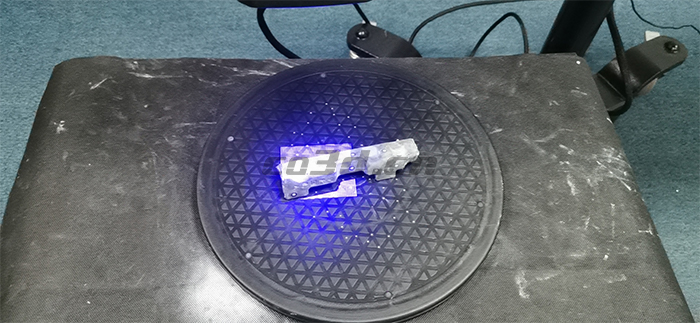

Foam film detail display

solutions

Our engineers use the HL-3DS photo-type 3D scanner to quickly scan high-precision 3D data from different angles and directions. The scanner has multiple modes, can be adjusted, and is compatible with photogrammetric systems to obtain high accuracy data; 13 steps The coding calibration technology is helpful to eliminate lens distortion errors and improve scanning accuracy. The scanner is small, easy to carry, easy to disassemble and install, and easy to operate. Then import the scanned 3D data into the 3D software system for processing and analyze and obtain the effect data required by the customer. The overall scanning process is fast, and the capture is complete, and the details are well scanned.

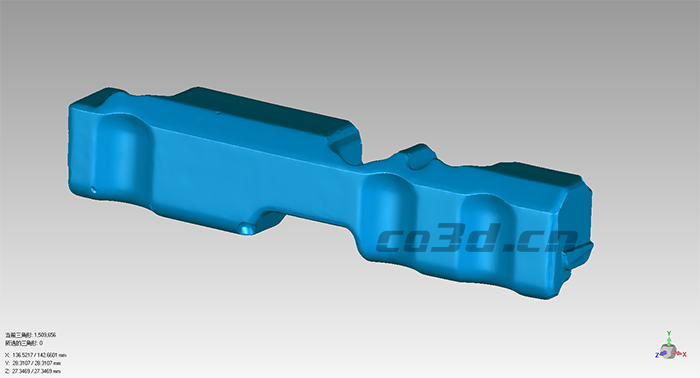

STL data chart of foamed film

The customer is very satisfied with the acquired scan data, which can be used in later work operations, which can effectively solve the problem and provide complete and reliable data. And we can also go to the customer's site for two days of equipment use training and service, so that the customer feels assured and chooses to cooperate with us.

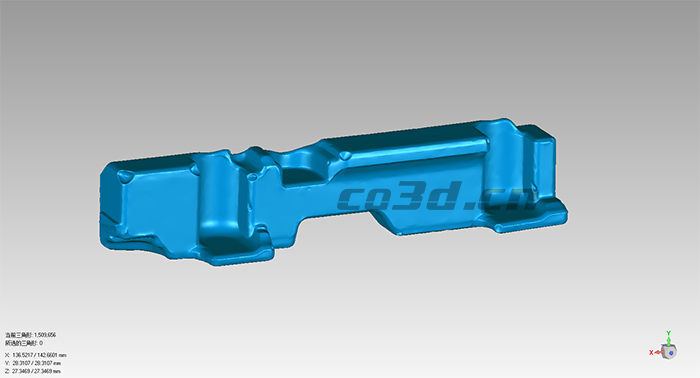

STL data chart of foamed film

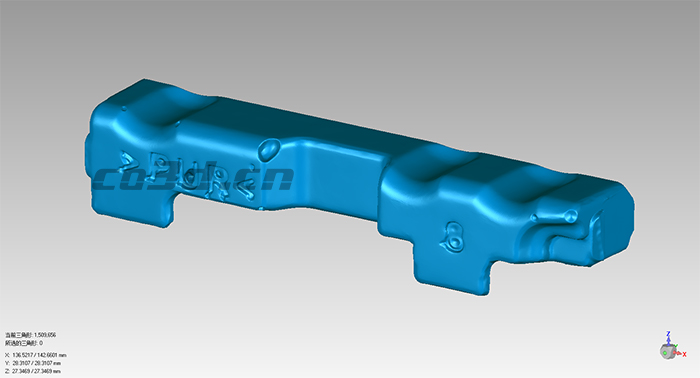

STL data chart of foamed film
