Plastic products are a general term for life, industry and other articles processed by using plastic as the main raw material. Since there is no original design drawing, it cannot be repaired and redone during the later damage process. Therefore, customers want to adopt new three-dimensional scanning technology, collect plastic product data for reverse design, and later model or design redo.

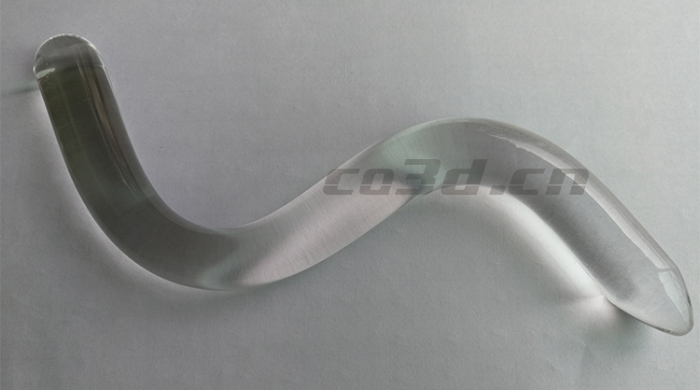

Real shot of plastic handle scene

Practical problems

For customers to reverse design plastic products, the data accuracy is required to be high, and good data can be used for later repair or redesign to make good results. Plastic products are transparent and curved.

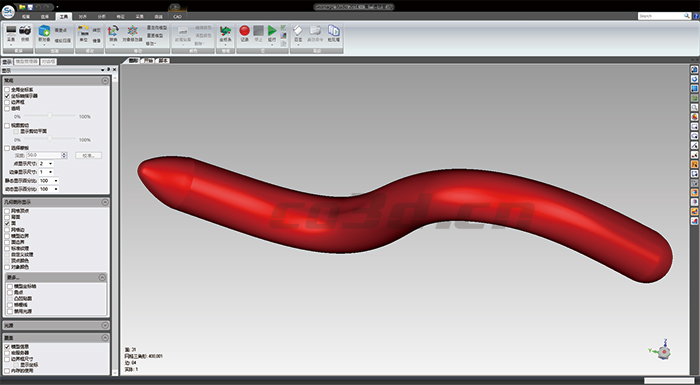

Plastic handle STL data chart

The traditional scanning method has certain scanning difficulty, and the accuracy of obtaining data is not high. It adds difficulty to the reverse work in the later period, consumes a long time, wastes too much resources, and has poor effect. A new three-dimensional scanning technology is required to reverse the scanning.

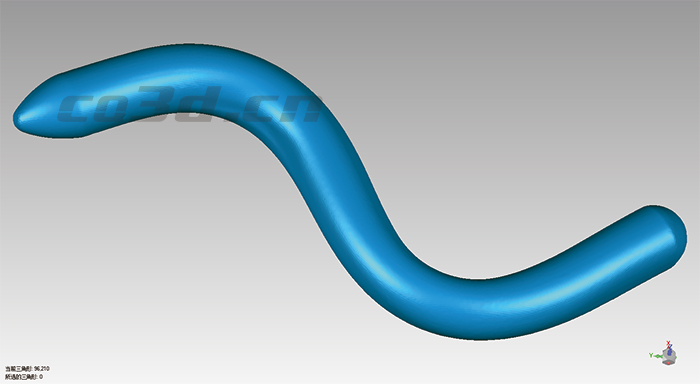

Plastic handle STL data chart

solutions

According to the problems faced, use our handheld 3D scanner HOLON751. This device has fast scanning speed, high accuracy and strong stability. It is small in size, easy to operate and use, and has a wide range of application, because it has multiple scanning modes, multi-line scanning, single-line scanning, and fine scanning.

Plastic handle STL data chart

Before scanning transparent objects, spray a layer of imaging agent on the surface (wipe it with alcohol to clean it) to help scan and collect data. In a short time, we can complete the scan to obtain high-precision data of plastic products. The scanned data is imported into the three-dimensional software for post-processing, and the scanned data is reversely designed by the reverse software. The customer is very satisfied with the data we have obtained, can solve the problems faced by the customer, and can carry out post-modeling or redesign.

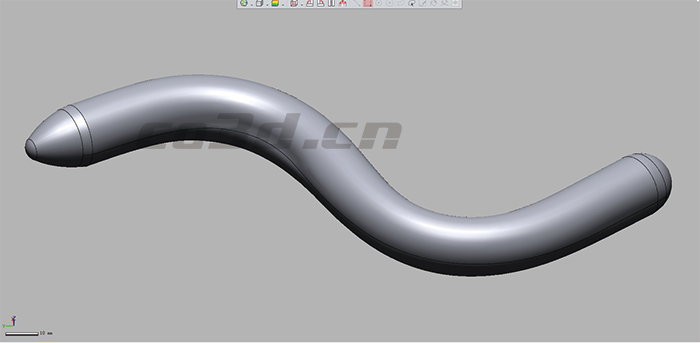

Reverse data graph of plastic handle
