3D scanning of auto parts

With the increasingly fierce market competition in the automotive industry, continuous independent development and innovation, as well as continuous upgrading and application of technology. As the foundation of the automobile industry, auto parts are factors that support the sustainable and healthy development of the automobile industry. Changes need to be made to adapt to modern development, improve the ability of independent innovation, shorten the development cycle, and provide high-quality production products. Customers found our company and used 3D scanning technology to scan their car parts and obtain data. I hope to complete the work in a short time, and the completion effect is good, the pursuit of high efficiency and quality.

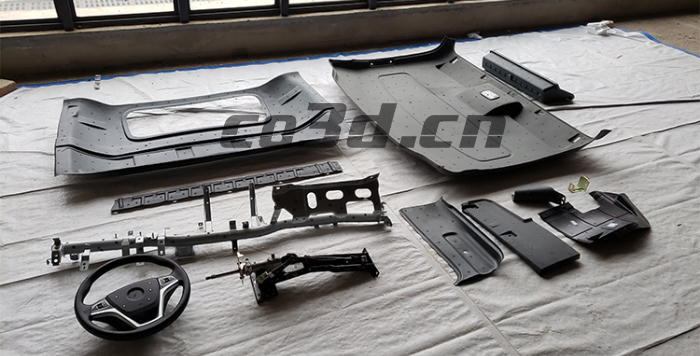

Auto parts scan scene map

Practical problems

Customers provide many types of accessories that need to be scanned, and the sizes are different. Some structures have complex appearances. Each component requires high accuracy scanning and short scanning time.

Auto parts scan scene map

The accuracy of the data scanned by the traditional scanning method is not high, the details are not clear, and high-precision scanning cannot be performed, so the customer's requirements cannot be fulfilled.

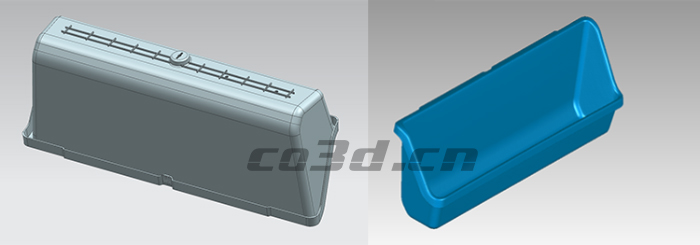

Auto parts reverse design

Co3d solutions

According to the samples provided by our customers, our engineers use the hand-held 3D scanner HOLON751 to scan the samples one by one. First, we will mark the samples to facilitate the positioning and splicing. Then use the scanner to scan quickly in all directions one by one, handy for easy operation, multi-angle conversion scanning, and multi-mode, you can switch a single laser scan, suitable for scanning deep holes and dead spots, can solve the problem of poor detail scanning.

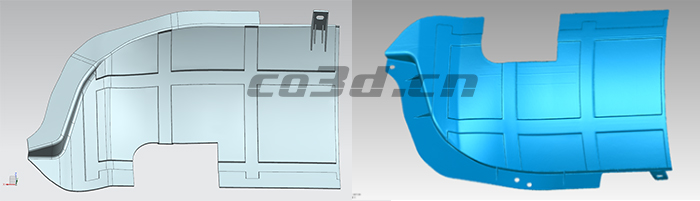

Auto parts reverse design

Importing the scanned 3D data into 3D software processing can generate a 3D data analysis report. The scanned data has high accuracy and speed, short time, and good detail scanning. The three-dimensional data can well meet the needs of customers, and is applied to the later work of customers to solve the problems faced by customers. Our new scanning equipment has gained great recognition from customers.

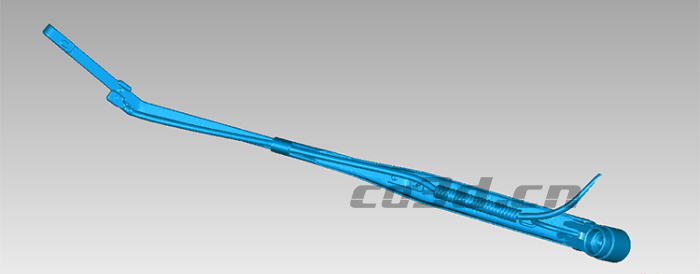

Car wiper STL data chart

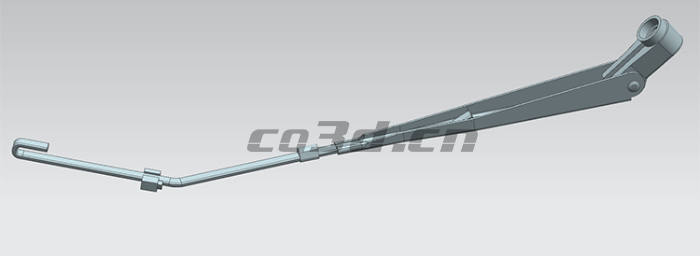

Car wiper reverse design
