3D scanning of RV interior space

With the progress of income and society, RV will have great development in the future. Nowadays, people are more and more eager for self-driving leisure vacations. Through the continuous development and improvement of this process, the development platform for the RV industry is consolidated. Customers need to scan the space inside the RV to obtain high-precision data. The comfort of the RV space is very important. According to the changes in living needs, corresponding improvements need to be made to meet the market demand.

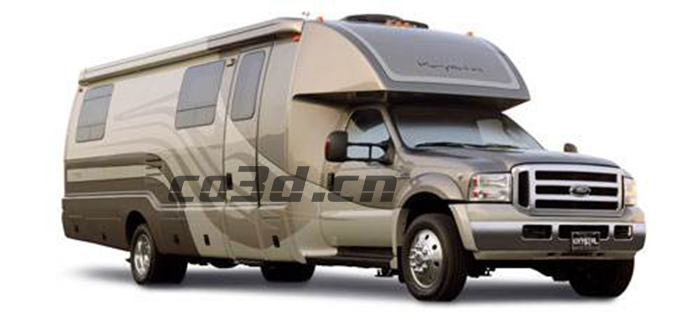

RV physical map

Practical problems

The interior of the RV is large, similar to a space in a room. Customers need 3D scanning to get the spatial data inside the RV. Traditional three-dimensional scanners cannot perform spatial scanning, and the data collection density is not sufficient to accurately measure them and achieve the desired results.

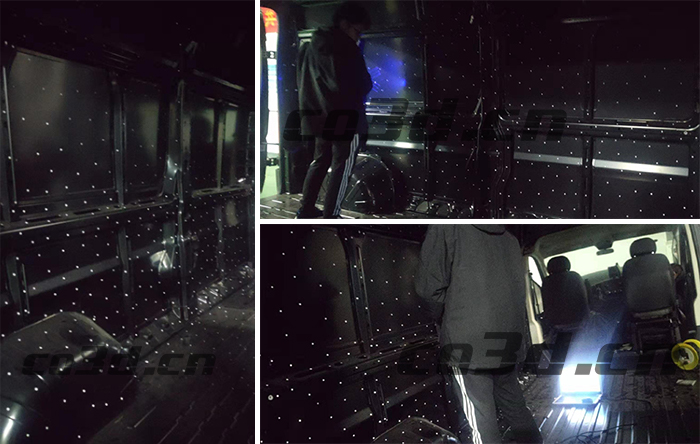

RV space scan scene map

Holon solutions

The RV has a large internal space and high customer data requirements. Our engineers use the handheld 3D scanner HOLON380 + 3D photogrammetry system 3DP. Perform pre-adhesion processing on the workpiece, then use the 3D photogrammetry system HL-3DP to take pictures from different angles, and then import the captured pictures into photogrammetry software. The software will automatically calculate the overall frame of the RV space according to the principle of triangulation point. Then use the handheld three-dimensional scanner 380 to perform a comprehensive scan of the interior space of the RV to obtain high-precision data. The scanning speed is fast and the time is short.

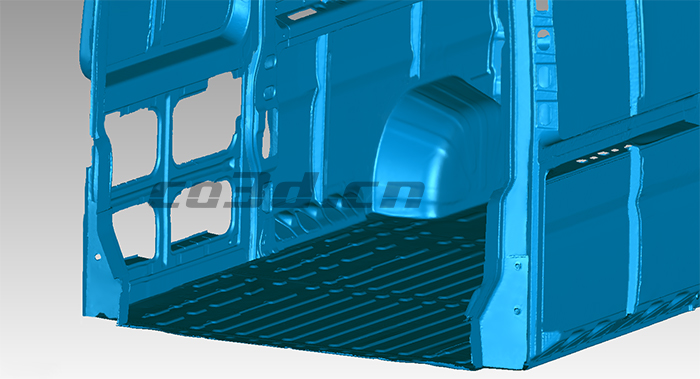

RV space scan STL data map

Import the acquired data into 3D software for processing to obtain higher accuracy data. The use of the two devices can correct the point cloud information of large-area curved surfaces, greatly improving the overall point cloud stitching accuracy and improving work efficiency. The obtained data meets the customer's requirements and can be used in later work.

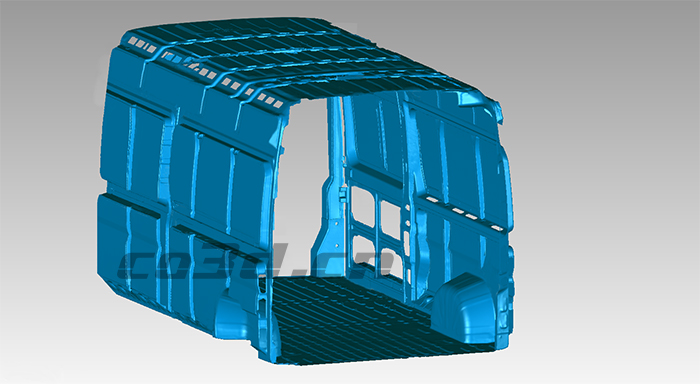

RV space scan STL data map

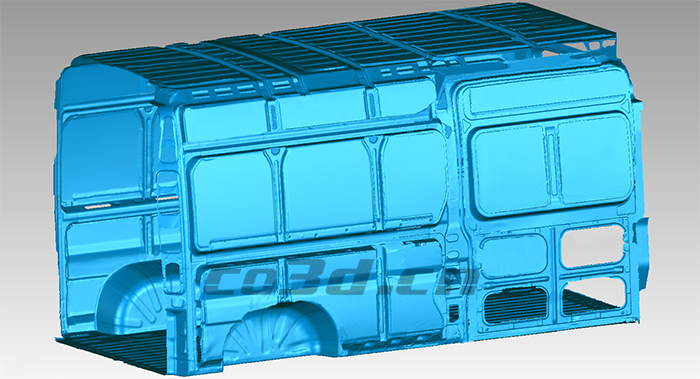

RV space scan STL data map
