3D inspection of automotive turbocharger parts

A well-known auto parts manufacturer needs to carry out three-dimensional inspection of auto turbocharger parts. According to the problems faced by customers, our company has independently developed and produced Huaguang 3D scanner 3DS+, and combined with 3D inspection engineering software, obtained Accurate 3D data for automotive turbocharger components. The obtained data of the automobile turbocharger parts and the original CAD model were compared with the original data, and the actual data of the automobile turbocharger parts were actually scanned to analyze whether the finished product was qualified.

Practical problems

1. Since the automobile turbocharger often works at high speed and high temperature, and involves the connection with multiple parts of the engine, the precision required by the customer for the automobile turbocharger parts is very high.

2. The automobile turbocharger parts have the characteristics of complex shape, large surface change, etc. The traditional measurement method is very cumbersome and time consuming, and it is not easy to accurately and quickly design the overall structure of the automobile turbocharger parts. Ground measurement, detection, and data is not accurate enough.

Co3d solutions

In view of the complex shape and large curvature change of automotive turbocharger components, Huaguang 3D technical engineers proposed a solution to quickly acquire high-precision 3D data of automotive turbocharger components using 3D scanner 3DS+. Using 3D inspection design software to convert automotive turbocharger parts data into triangular mesh surface data + Pro/E, UG and other mainstream design software for post-processing, 3D data acquisition of automotive turbocharger parts, The 3D inspection and analysis report analyzes whether the finished product is qualified or not and successfully solves the problem faced by the customer.

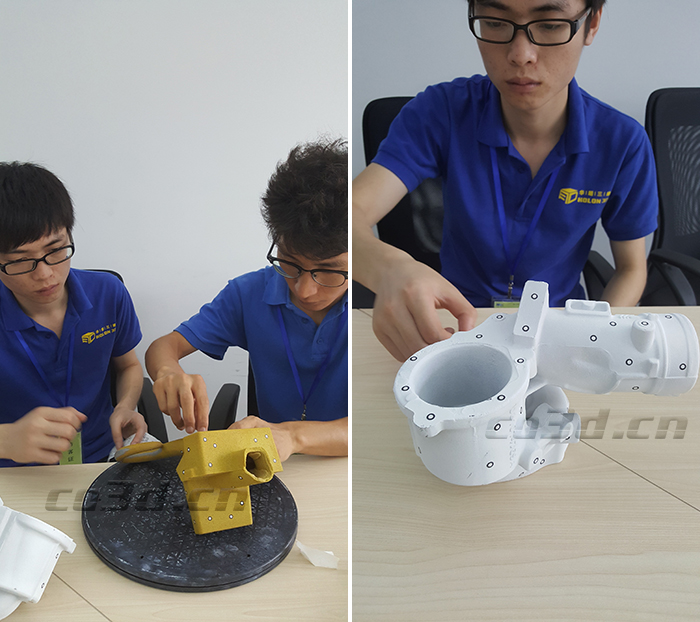

Automotive turbocharger parts pre-work

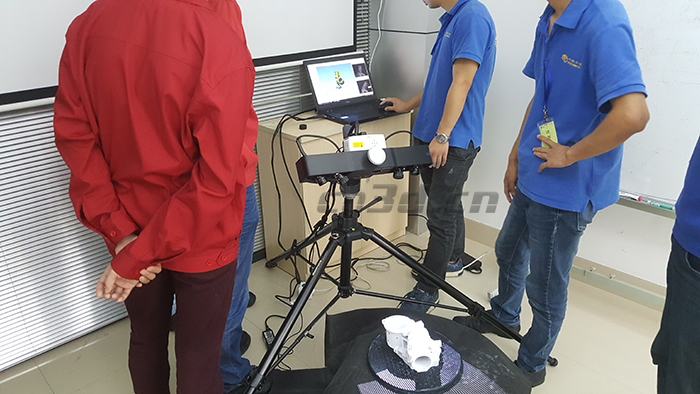

Automotive turbocharger parts field scan

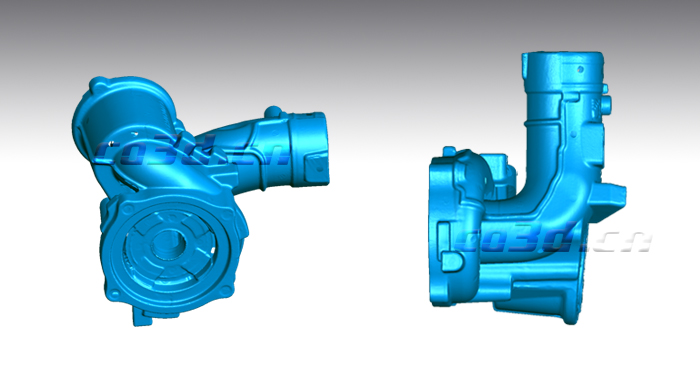

Automotive turbocharger parts STL data chart

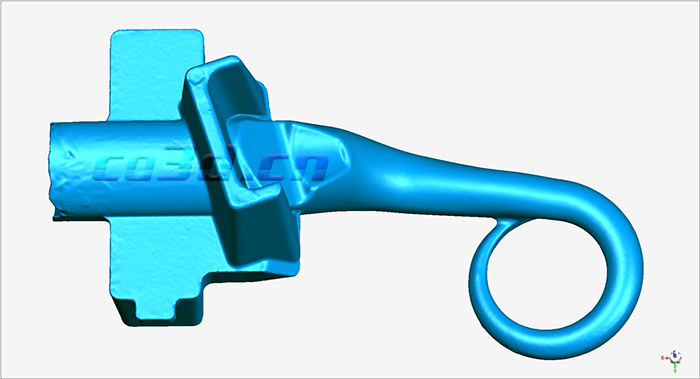

Automotive turbocharger parts STL data chart

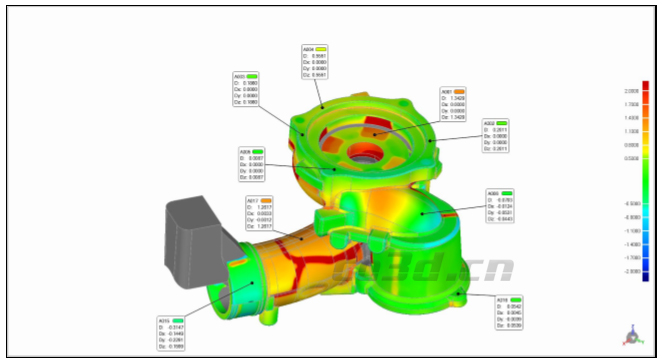

3D inspection diagram of automotive turbocharger parts

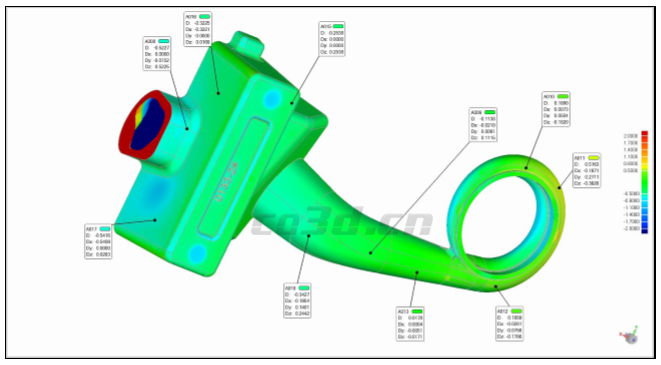

3D inspection diagram of automotive turbocharger parts
