3D scanning of aircraft blades

The thrust of the engine's external letter comes entirely from the thrust generated by the blades. The quality of the blades directly affects the performance of the engine, so it is necessary to pay attention to the quality of the blades. A research institute wants to use 3D scanning technology to scan the produced blades comprehensively, acquire data, and use our equipment to find a fast and suitable solution, which can be used in later design modification operations to improve the quality of the blades and enhance Engine performance.

Leaf scan scene map

Practical problems

For customer needs, high-precision 3D scan data. The blade is made of titanium alloy, the surface is easy to reflect light, the appearance is complex, and dead angles are prone to occur between the leaves. It is challenging to scan high-precision data in a comprehensive manner.

At first, the traditional scanning method was used, but only the outlines could be scanned, and the details could not be accurately scanned. There were limitations in scanning, which could not meet the needs of customers, and new-type measurement scanning technology was needed.

Leaf scan scene map

Co3d solutions

Our company will send personnel to the customer's site to demonstrate and explain the solutions we provide in detail. Engineers use the handheld 3D scanner HOLON751 to quickly and comprehensively scan the aircraft blades to obtain high-precision data, import the scanned data into 3D software for processing, and export the format data required by the customer for use in work.

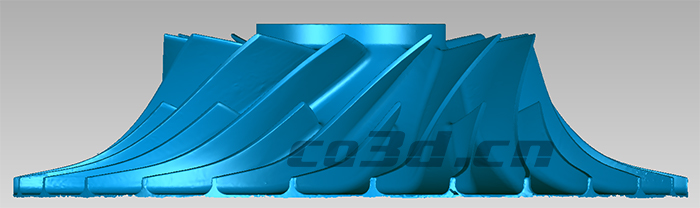

Leaf STL data map

Scanner stand-alone measurement accuracy is very high, data acquisition accuracy is high, and has a fine mode, suitable for scanning deep holes and dead angles, suitable for scanning customer workpieces. Easy to carry, easy to use, quick to get started, can save manpower and resources. Therefore, after watching our demo, customers are satisfied with our equipment and the solutions provided, which can solve the problems facing customers.

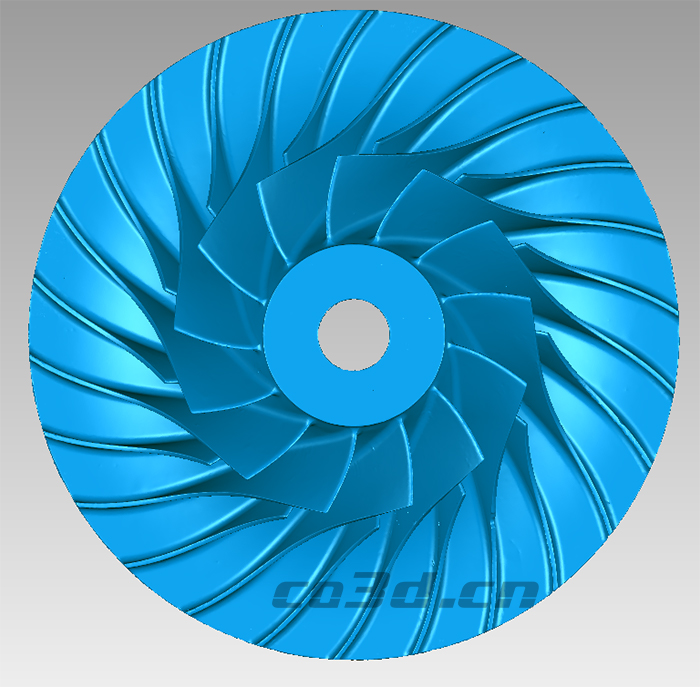

Leaf STL data map

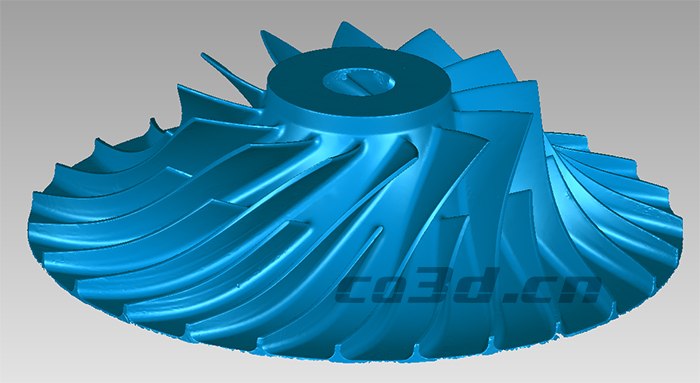

Leaf STL data map
