Reverse design of aircraft tail

The tail wing is a device installed at the tail of the aircraft, which can enhance the stability of flight. The tail can be used to control the pitch, yaw and tilt of the aircraft to change its flight attitude. The tail is an important part of the flight control system. It is inevitable that damage will occur during use, so it is necessary to quickly obtain the appearance data of the aircraft tail wing to provide accurate data solutions for later maintenance, repair and transformation.

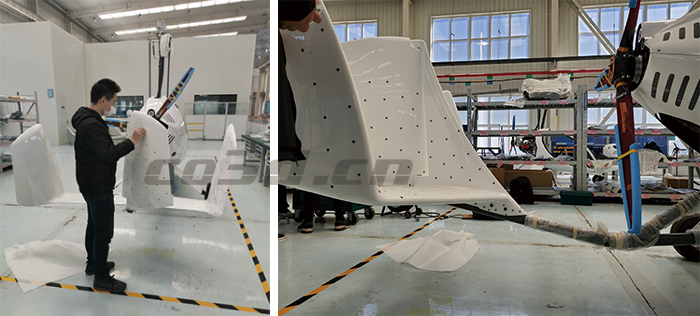

Real shot of the aircraft scene

Practical problems

The customer mainly wants to obtain the data of the aircraft tail, and reverse modeling is performed later. Since the traditional scanning method collects large objects of the aircraft tail, it is impossible to obtain accurate data for the place where the surface angle is large, so the customer needs to find other suitable technologies Data to solve problems in the work.

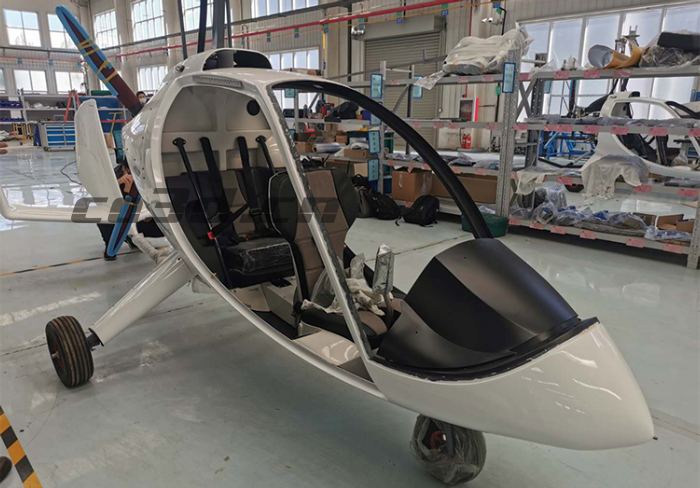

Spot map of the aircraft on the spot

Co3d solution

Customers looking for Hualang 3D, hoping to use the new 3D scanner equipment to quickly scan, can obtain accurate data storage and reverse modeling. In the later period of maintenance, production can use data to improve work efficiency.

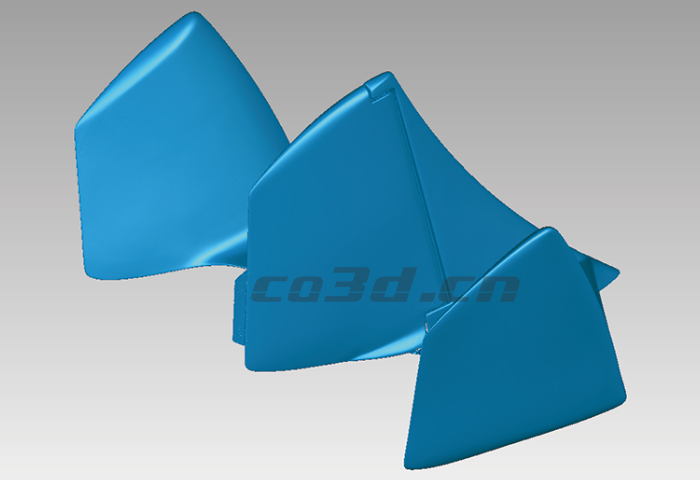

Airplane tail STL data chart

Use our hand-held three-dimensional scanner HOLON751 to carry out a comprehensive and fast scan of the aircraft tail. The full scan only takes 10 minutes. Fast scanning speed, high precision, strong stability, easy operation and flexible scanning. Import the scanned data into post-processing software, reverse process the data to obtain the customer's needs, greatly improve the work efficiency, want to shorten the time required for the work before comparison, and provide customers with high-precision data, data The model solves the difficulty of obtaining data in the work and the reference data for later maintenance and transformation, speeding up the progress of the work.

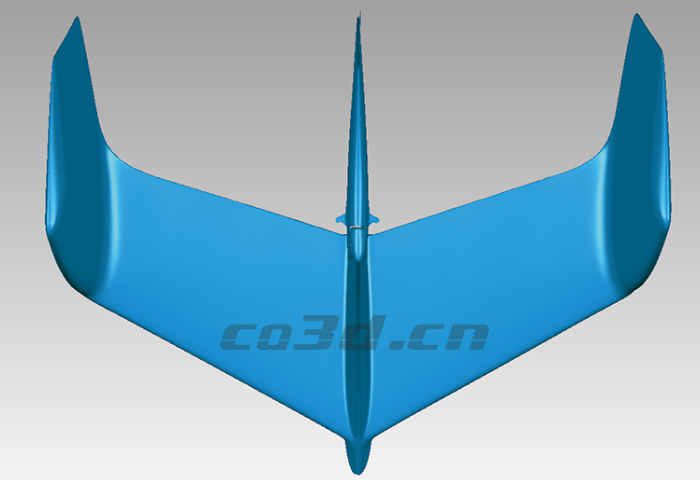

Airplane tail STL data chart

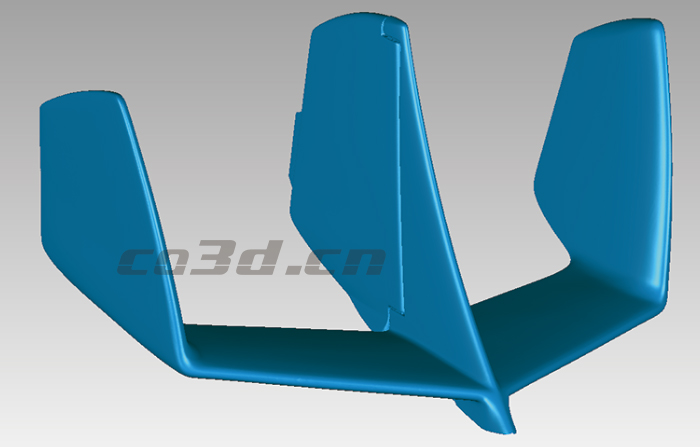

Airplane tail STL data chart
