Gastroscope handle reverse detection

Gastroscope is a medical device, which has high quality requirements and is reasonable in all aspects. In order to design a more competitive gastroscope handle, the manufacturer uses a new measurement method to scan the gastroscope handle for reverse detection. Or where there are defects, the appearance and details of the gastroscope handle can be improved more rationally, and the production efficiency and product quality can be improved.

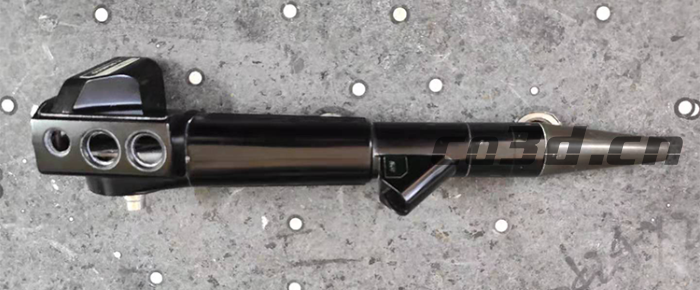

Gastroscope handle site scan

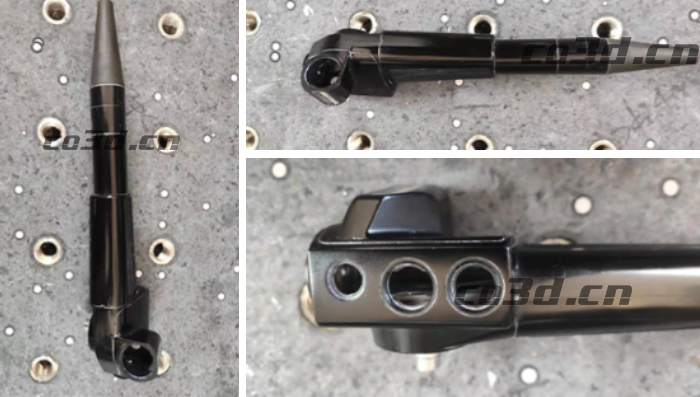

Gastroscope handle site scan

Practical problems

The gastroscope handle performs three-dimensional scanning for reverse detection, and the customer has high precision on the scanning data. The handle of the handle is complex in structure, has various operational functions, and requires high detail scanning.

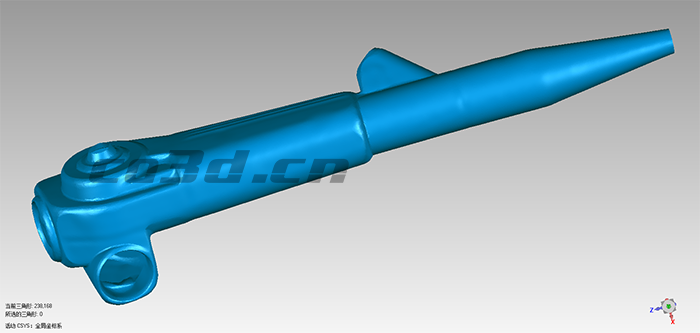

Gastroscope handle STL data chart

Customers want to complete the scan as soon as possible, reducing the time. The use of traditional scanners is time consuming, the measurement accuracy can not meet the requirements, and it has certain difficulty in scanning work.

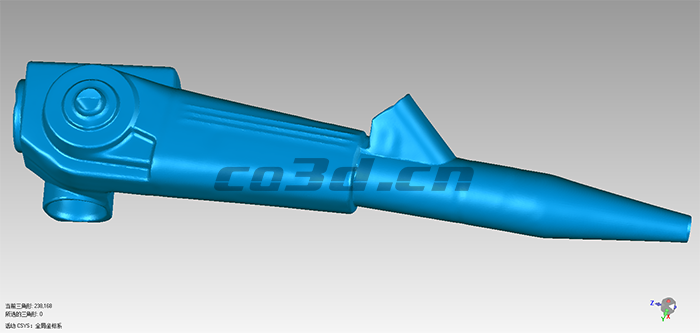

Gastroscope handle STL data chart

Co3d solutions

In the traditional measurement method can not solve the problem, our engineers use the handheld 3D scanner HOLON760 to obtain comprehensive 3D data according to the requirements of the customer. The equipment is easy to operate, the scanning speed is very fast, the volume accuracy of the single machine is high, and The scanning process data will be displayed on the computer in real time, and the scanning data is accurate and complete.

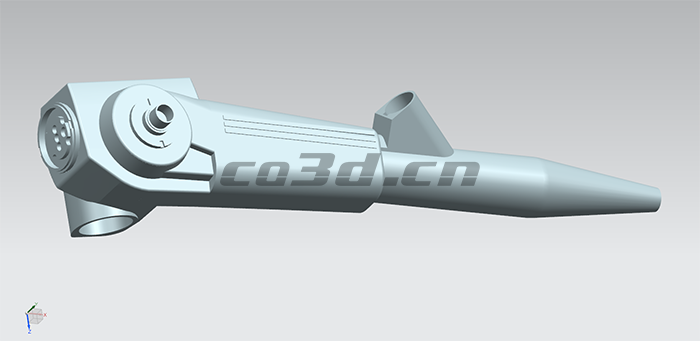

Gastroscope handle reverse design

The scan at the detail is very good. The scanned 3D data is imported into the 3D software for processing and analysis, and the analysis report is easy to understand, and the user can intuitively understand the quality problems of the product. The scanner scans quickly and with high precision, and can be completed by one person, saving manpower and improving work efficiency, solving problems in a short time. Acquiring data can help customers solve problems, improve design, and improve quality.

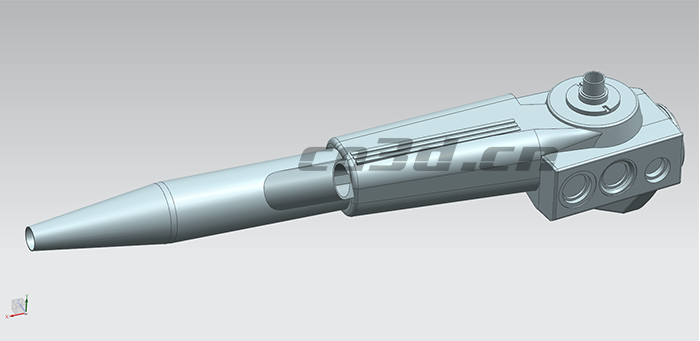

Gastroscope handle reverse design

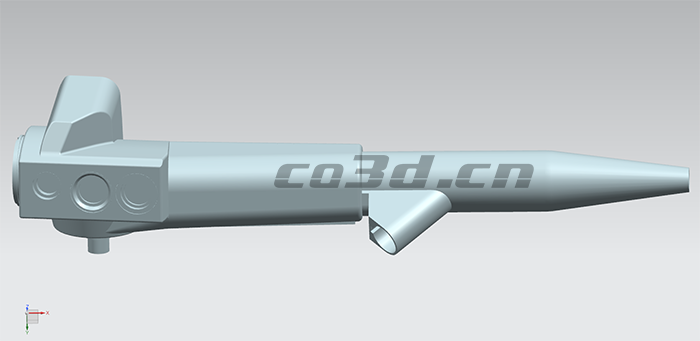

Gastroscope handle reverse design
