3D scanning of human legs

The human body three-dimensional scanner is a non-contact automatic measurement of three-dimensional human body surface contours by using optical measurement technology, computer technology, image processing technology, digital signal processing technology, and the like. By utilizing the advantages of optical three-dimensional scanning and the harmlessness of white light to the human body, the human body can be scanned in a short time, and then automatically decomposed by software to obtain accurate and complete human point cloud data. A domestic hospital wants to use this technology for human body scanning, which can be used in later medical work.

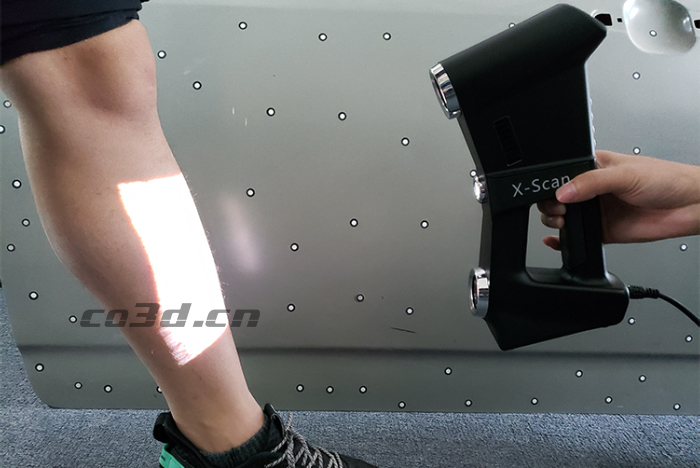

Human leg scan scene map

Practical problems

During the scanning process, the scanned body needs to maintain a posture and cannot move, so that the scanning data is more accurately split. Using the traditional measurement method, it takes too much time, and the accuracy of the acquired data is not high, and color scanning cannot be performed. The degree of reduction is not high, and the customer's demand is not met.

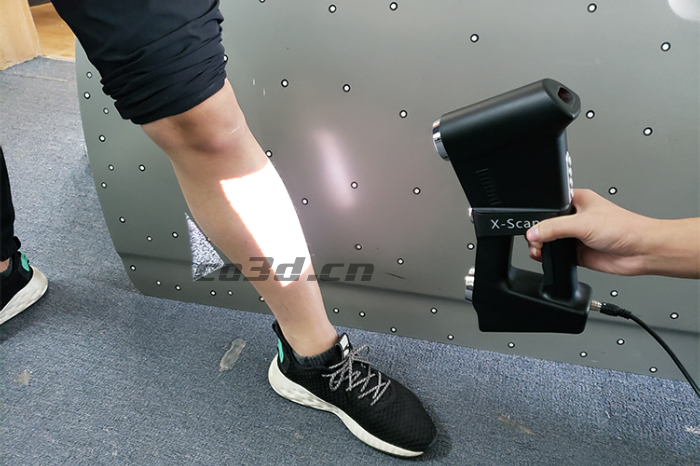

Human leg scan scene map

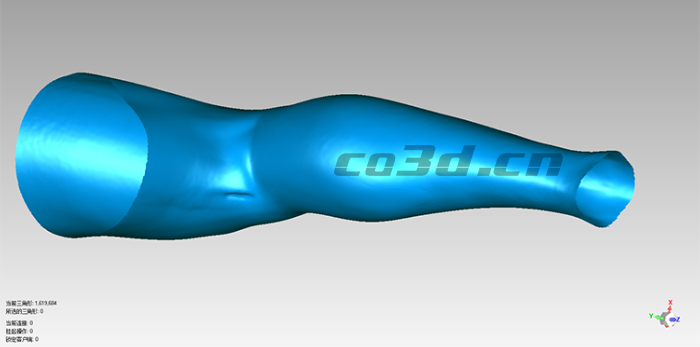

Human body STL data chart

Co3d solution

Our engineers use the X-scan multifunction handheld color 3D scanner for body scanning. Using a scanner to quickly acquire a human body scan 3D body scan is not just a simple 3D scan, it has high requirements for all aspects of data accuracy. Features intelligent, portable, advanced, non-contact color scanning. It can also perform real-time color scanning and rendering. The scanning data is color. The restoration device is simple and easy to learn and use. The scanning process generates data in real time. The customer is very satisfied with the whole scanning process and the acquired data is good. Effectively solve problems and meet customer needs.

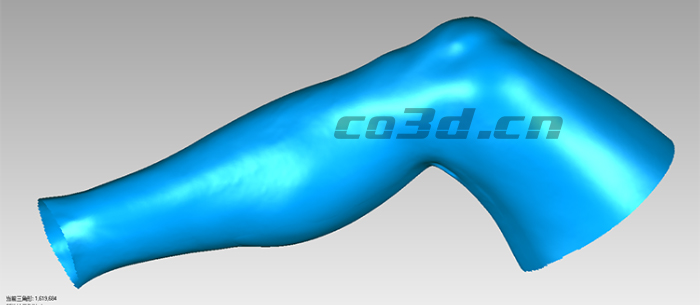

Human body STL data chart

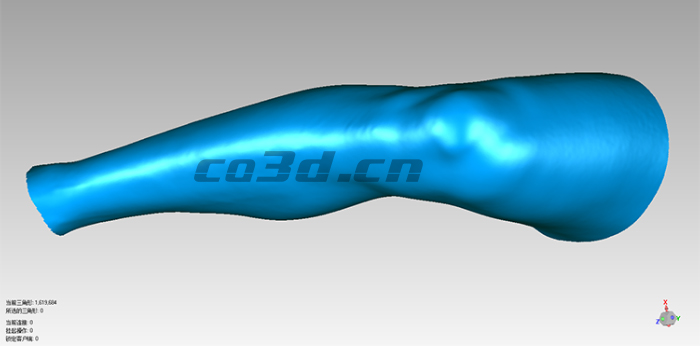

Human body STL data chart

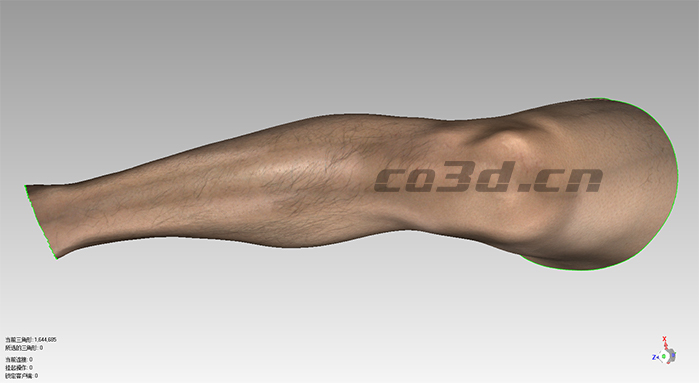

Human leg color map

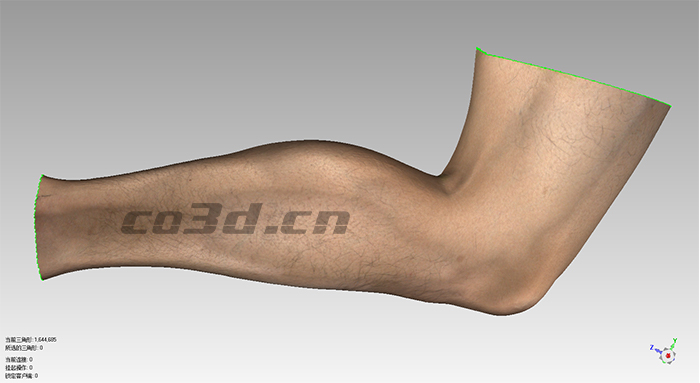

Human leg color map
