Accurate measurement of corridor escalators

Release time：2024-08-02 Views：102

The escalator is focused on easily solving the problems of elderly people going up and down the stairs, disabled people going up and down the stairs, people at home, and providing the best solution for villa elevators and hotel disabled elevators. A well-known electric escalator manufacturer in Guangzhou needs to be on the corridor. The escalator performs three-dimensional scanning to obtain high-precision three-dimensional data for practical simulation and data acquisition. Provide effective data support for the installation and production of later electric lifts.

Facing problems

Practical problems　

1. There are many large steps in the corridor escalator. The use of traditional manual measurement is not only time-consuming and laborious, but also low in efficiency and high labor cost.

2. The traditional measuring method is used to measure the corridor escalator, which is easy to form a large manual error. There is no accurate measurement of the topography of the corner surface and there will be too large error to meet the customer's demand.

Solution

solutions

1. There are many large steps in the corridor escalator. The use of traditional manual measurement is not only time-consuming and laborious, but also low in efficiency and high labor cost.

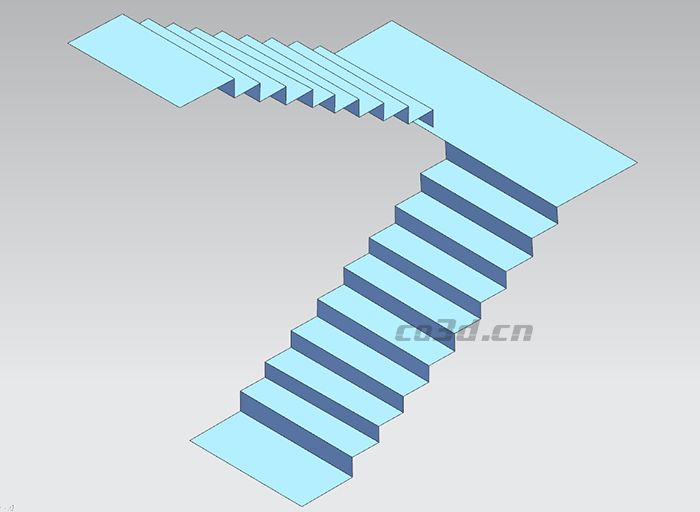

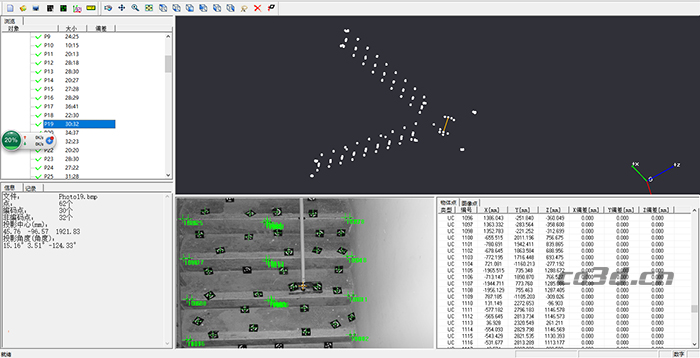

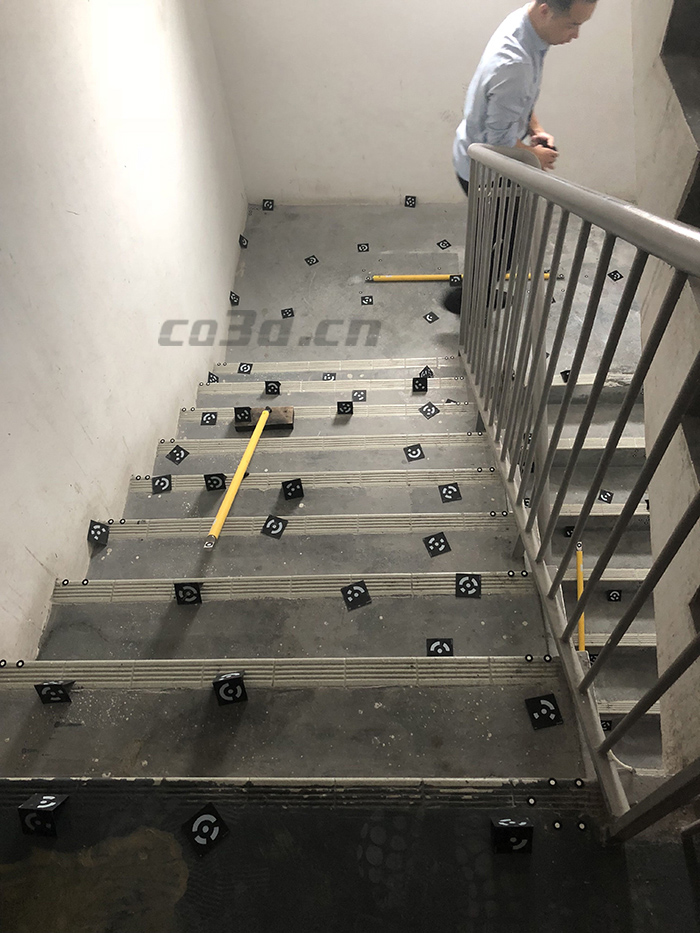

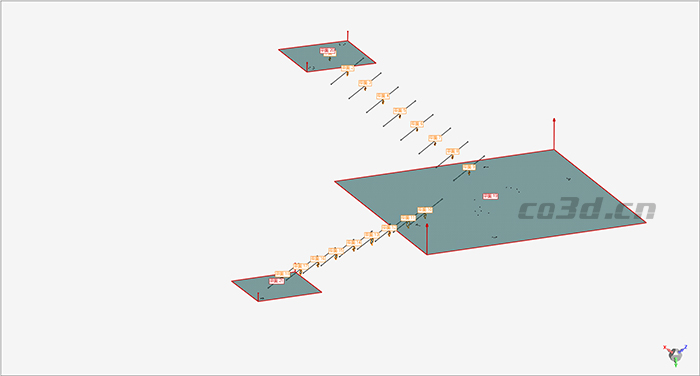

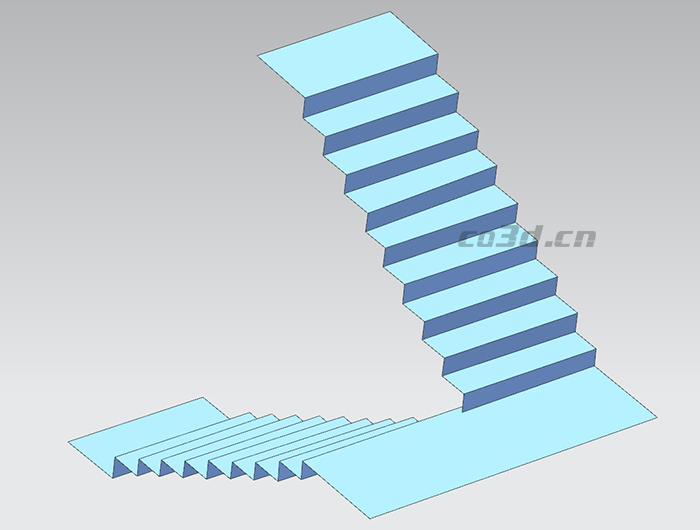

2. The traditional measuring method is used to measure the corridor escalator, which is easy to form large artificial error. There is no accurate measurement of the topography of the corner surface and there will be too large error. It is difficult to meet the traditional measurement method. The accuracy is too low and the limitation is large. Unable to make a complete measurement. The three-dimensional technical engineer proposed the solution: use our three-dimensional photogrammetry system (HL-3DP) to take a photo of the corridor escalator, get the overall three-dimensional coordinates of the escalator, import the photographed photos into the software for calculation, and accurately obtain the corridor. The overall data of the escalator provides an effective solution for the installation and commissioning of the escalator in the later stage of the enterprise. customer demand.

楼道精确测量
