A fan blade manufacturer in Chengdu needs to perform three-dimensional data quality inspection on the fan blades. Because of the core components in the fan blade assembly, the fan blades are very high in quality control during production, and it is aimed at detecting whether the finished products are up to standard. The problem is that Huaguang engineers use the handheld 3D laser scanner 3DH-3M to perform three-dimensional inspection and comparison analysis on the three-dimensional scanning of the fan blades.

Practical problems

1. The customer requests that the scanning fan blades have fast speed and high precision, and the overall error value of the scanned data is small.

2. The blade blade has a large curvature change and a large curvature of the surface. The traditional measurement tool cannot measure the curvature data of the surface.

solutions

Errors occur in the production process of wind turbine blades. Due to the traditional measurement methods, the acquired data is limited and the 3D data of the wind turbine blade surface cannot be accurately measured. Huaguang 3D technical engineer: 3DH-3M fast scanning using handheld 3D scanner Obtaining the three-dimensional data of the fan blade, the scanning precision is high, the speed is fast, the operation is convenient and the time is short, the customer's scanning demand is met, and the problem faced by the customer is successfully solved.

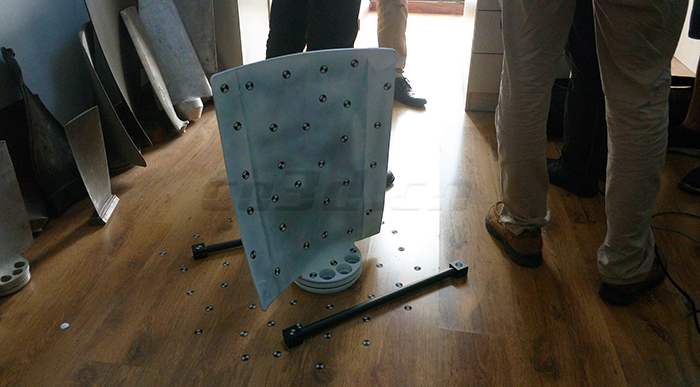

Fan blade physical map

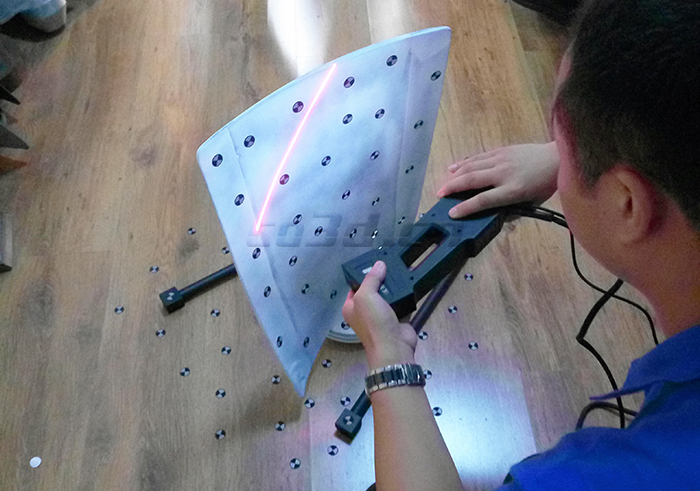

Fan blade field scan

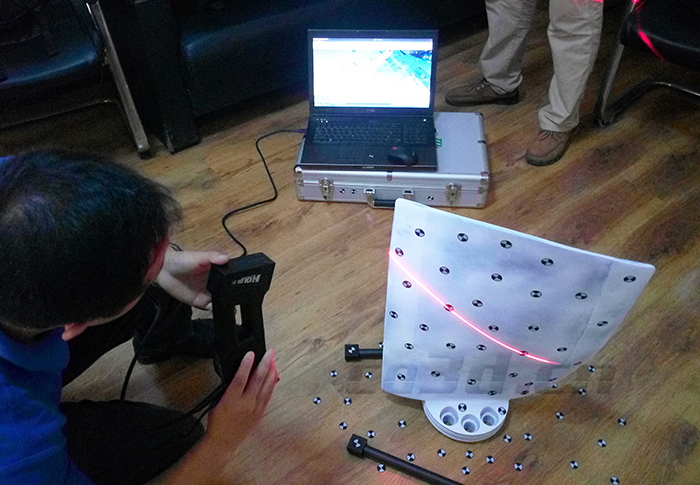

Fan blade field scan

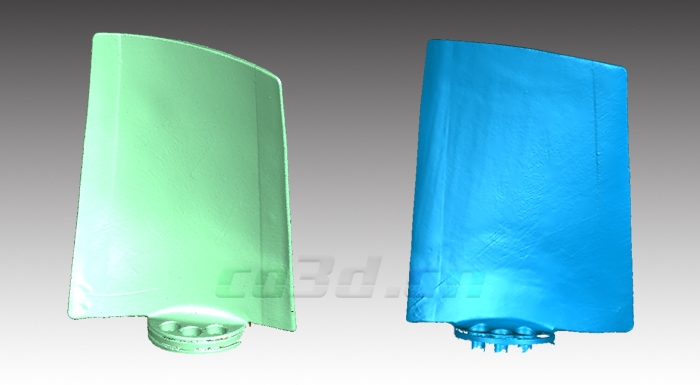

Fan blade 3D data

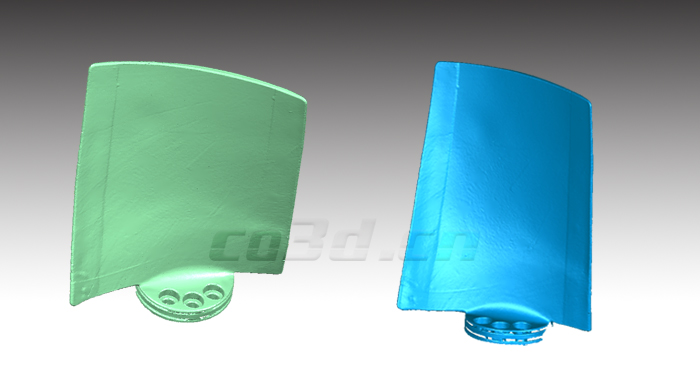

Fan blade 3D data
