Parts are parts or components assembled on machinery. Each part is an important part of machinery and equipment. The lack or wear will affect the use and performance of the product. During the use of machinery and equipment, especially agricultural machinery, the wear rate is fast during long-term labor. Therefore, it is necessary to obtain the data of the accessories, save the data and use it in reverse design, which can provide data support and reduce repair costs.

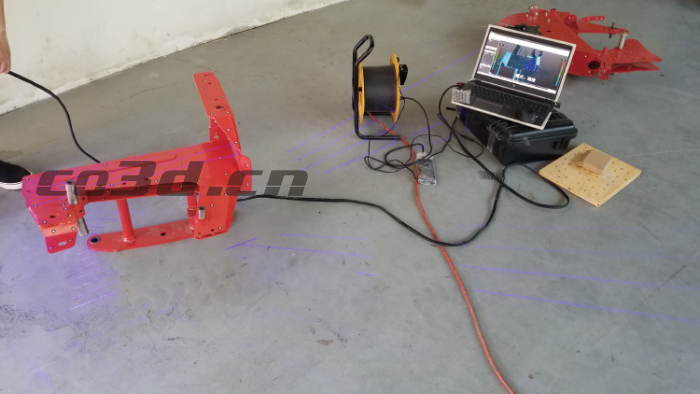

Agricultural machinery scanning scene

Practical problems

The customer purchases agricultural machinery parts and wants to collect three-dimensional data, which can speed up repairs during the repair of parts wear. The shape of the accessories is irregular, the surface has many small features, and the customers have high requirements for accuracy, so they also have high requirements for scanning work.

Agricultural machinery scanning scene

Because customers use traditional scanners to scan, the scanning speed is slow, the work process is complicated, and it takes a long time to complete. Some shape and position features are not accurately measured, resulting in large errors, which can easily affect reverse design.

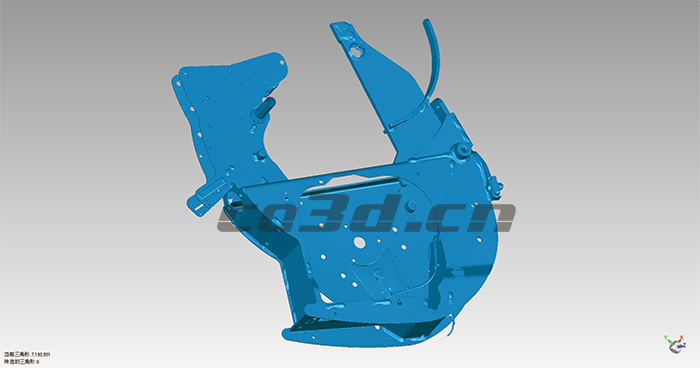

Agricultural machinery STL data chart

solution

Hualang 3D handheld 3D scanner HOLON751 has fast scanning speed, and the scanning process is visualized, and the operation being performed is timely understood, which brings great convenience to the scanning work.

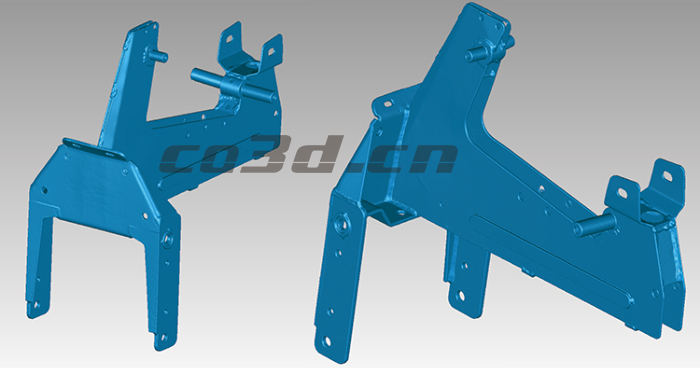

Agricultural machinery STL data chart

Use a 3D scanner to obtain high-precision 3D scanning data for agricultural machinery parts, then optimize the acquired data, and then import it into 3D software for reverse design. The scanner uses a flexible and convenient scanning process, fast speed, and fine mode, so the data error is small and the accuracy is high. Obtaining data can fully meet the requirements of customers, with high accuracy, and can be used in later design and development.

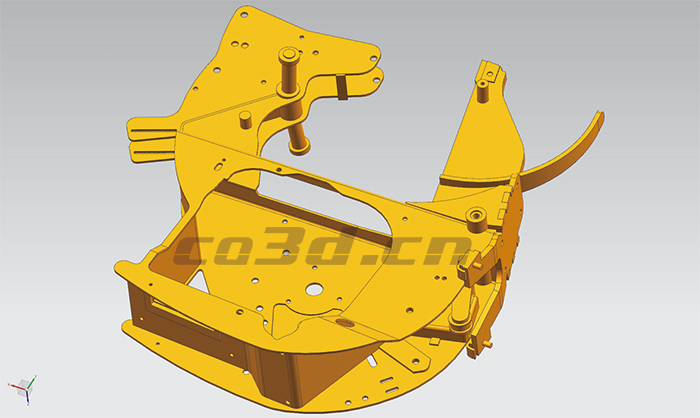

Agricultural machinery reverse data graph

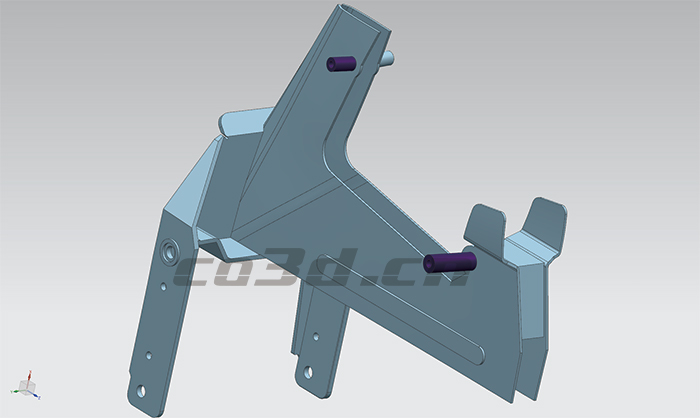

Agricultural machinery reverse data graph

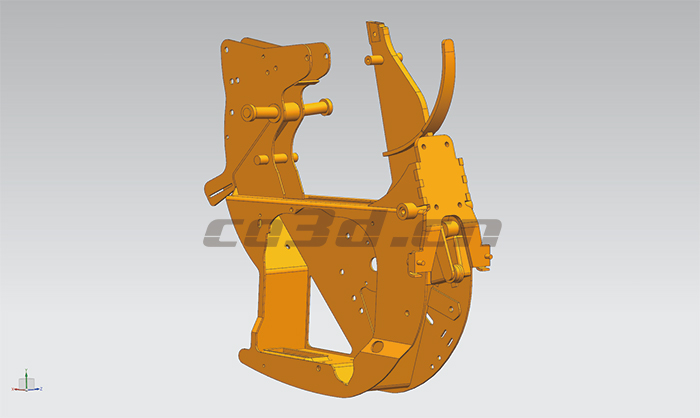

Agricultural machinery reverse data graph
