As the pace of social development has accelerated and the level of technological manufacturing has increased, industrial production has gradually replaced machines with manual operations to speed up production, increase work efficiency and reduce labor costs. Industrial turntables need to use three-dimensional scanning technology to scan to obtain accurate data, detect whether there is a problem, and avoid deviations in the production process.

Scanning scene of industrial turntable

Practical problems

The surface part of the scanned sample is complex, irregular in shape, and has holes of different sizes, which requires high accuracy of the scanned data and reduces problems in the production process.

Scanning scene of industrial turntable

Manual scanning or traditional measurement methods are used, which takes a long time, incompletely obtains data, and makes it difficult to detect the details of angles. There are many problems in the measurement process, which is not conducive to use in the later production process.

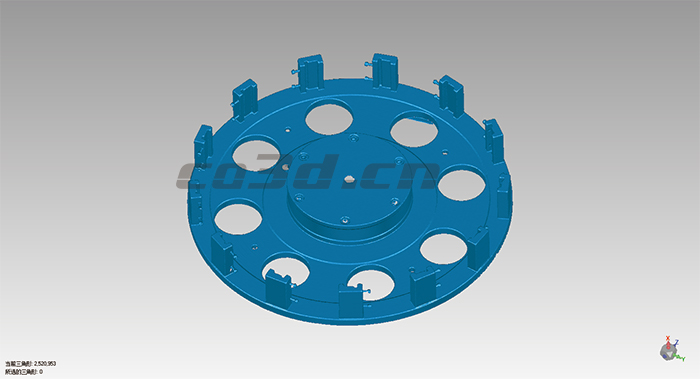

Industrial turntable STL data chart

solutions

Based on the customer's sample and needs, our technical engineers use the handheld 3D scanner HOLON751 to perform a scanning demonstration at the customer's site. First, mark points on the sample for positioning and splicing, and then use a 3D scanner to scan the sample completely. You can also switch the single laser line scanning mode to scan the details of the hole to obtain complete high-precision data. The hand-held scanner is easy to operate, flexible to use, and can be scanned in multiple directions of rotation. You can view your scan data and where you need to scan in real time on your computer.

Industrial turntable STL data chart

Import the scanned data into the three-dimensional inspection software, which can perform data inspection and analysis on the parts that need to be inspected. Finally, the production inspection and analysis report can be exported. The detailed scan processing effect is very good. The customer is very satisfied with our demonstration and can meet the needs , With great help for later production.

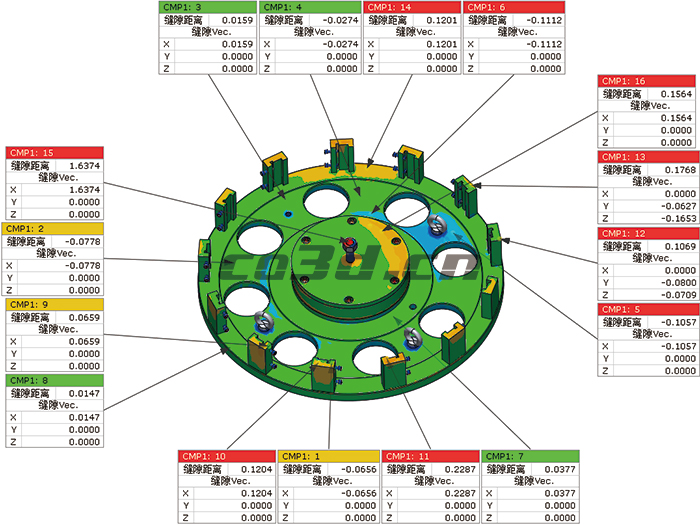

3D inspection chart of industrial turntable

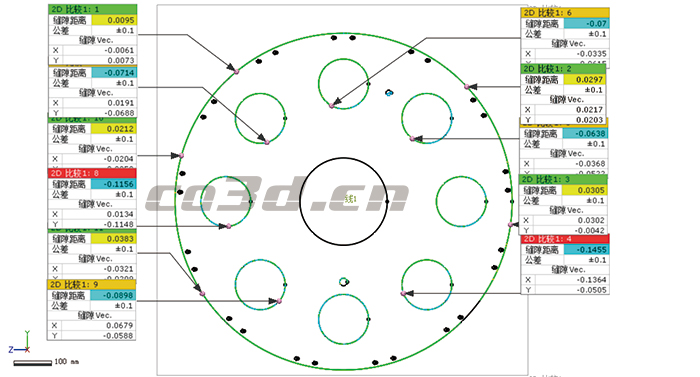

2D sectional view of industrial turntable
