A large-scale machining manufacturer in Wuchang needs to carry out three-dimensional inspection on precision and complex machining parts. Because precision and complex machining parts are indispensable important components in mechanical equipment, the quality control is very strict in production. Huaguang engineers use camera type. The 3D scanner HL-3DS+ quickly scans complex and complex workpieces to obtain high-precision 3D data for 3D inspection and comparison analysis to check whether the workpiece production is qualified.

Practical problems

1. The precise and complicated machining parts are complex and irregular in shape, and the grooves on each surface are different and the corners and shadows are many. The three-dimensional size to be measured is large, which brings great difficulty to the traditional inspection work.

2. The use of traditional measurement methods is cumbersome, time consuming and insufficient to collect data (insufficient data). It is difficult to guarantee the accuracy. For the irregular surface of the workpiece, it is impossible to perform effective measurement.

solutions

For the complex and complex machining parts with complex shapes and angular shadows, Huaguang 3D technical engineer proposed a solution: using the camera-type 3D scanner HL-3DS+ to quickly scan the 3D data of precision and complex machining parts, the scanning process is not only fast, accurate High, easy to operate and short in time, meeting the scanning needs of customers and successfully solving the problems faced by customers.

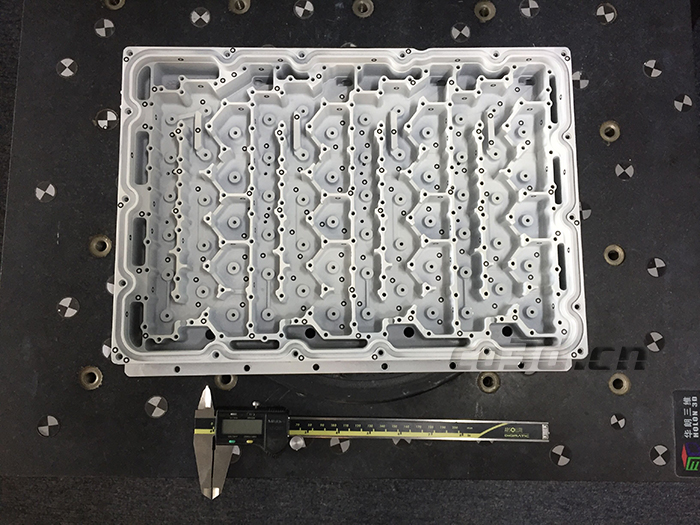

Precision complex machining parts physical map

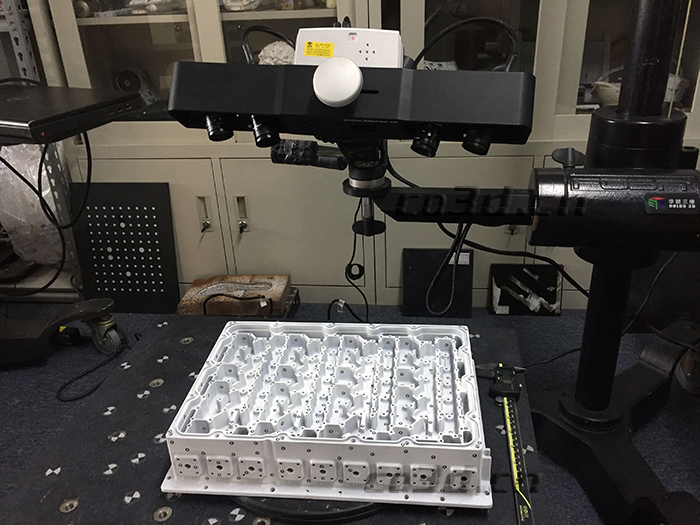

Scanning scene of precision and complex machining parts

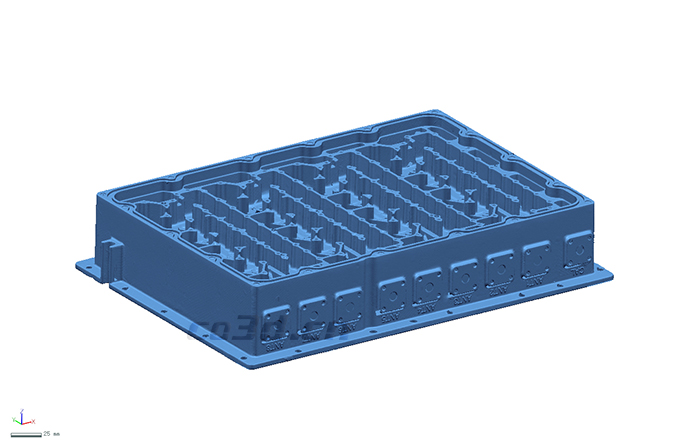

Precision complex machining parts STL data chart

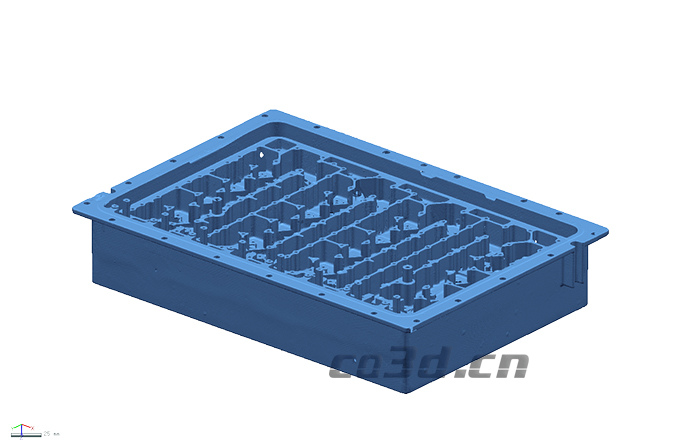

Precision complex machining parts STL data chart

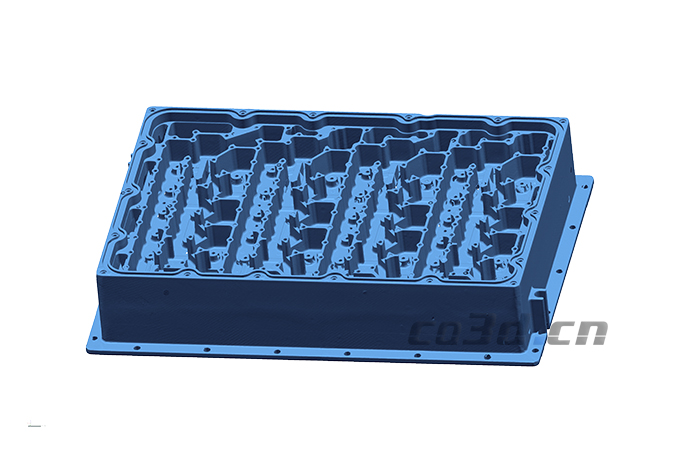

Precision complex machining parts STL data chart

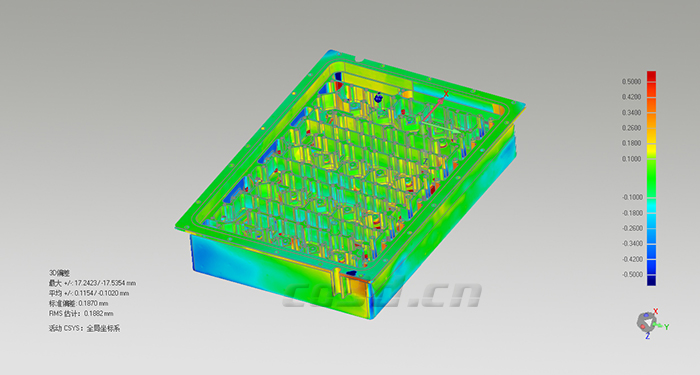

3D inspection map of precision and complex machining parts

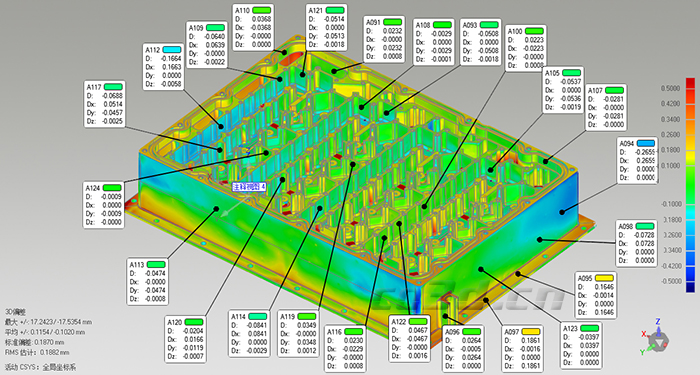

3D inspection map of precision and complex machining parts
