3D inspection of petroleum drill bits

Petroleum drill bits are an important tool for petroleum drilling. They are used to drill oil when it is extracted. The quality of its working performance will directly affect the drilling quality, drilling efficiency and drilling cost. The tooth face of petroleum bricks is prone to wear during use, and the degree of wear and tear will also have different effects on the later exploitation of oil. Therefore, customers need to understand the situation of oil bit detection and analysis, and use a three-dimensional scanner to scan and obtain data.

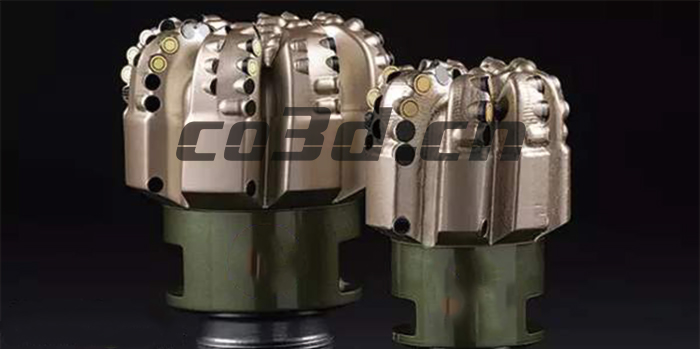

Real shot of oil drill site

Practical problems

The structure design of the tooth surface of the oil drill bit is complicated, with grooves. Since the oil drill is an important tool for oil drilling, it can have a direct impact, so the customer needs to detect the degree of wear of the tooth surface of the drill. Then use the traditional manual practice experience to repeatedly design and calculate, which will consume manpower, time, and the accuracy is low, the quality of the design is not high, or the use of digital design is convenient and simple.

Scanning scene of oil drill bit

Co3d solution

Using the latest handheld design of HOLON751, it first pastes points on the scanned sample to position and stitch. Then use the handheld 3D scanner HOLON751 to comprehensively scan the sample to obtain high-precision data. The scanning speed is fast, the accuracy is high, and the stability is strong. It can be visualized in real time, and the scanning operation data can be viewed on the computer while scanning. For deep holes and corners, you can switch to a single laser scanning mode for precise scanning. The scanner also has a fine mode, which clearly reflects the scanning of local small features.

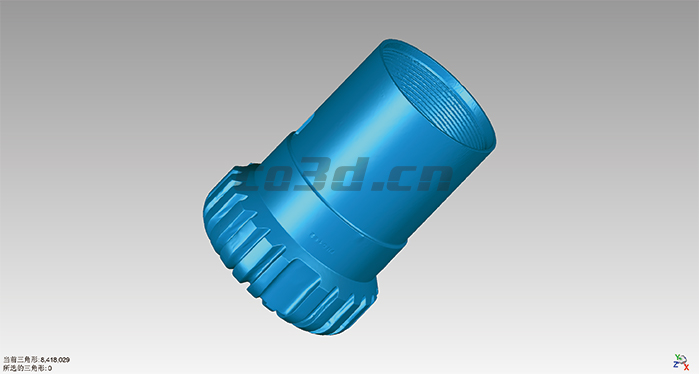

STL data chart of oil drill bit

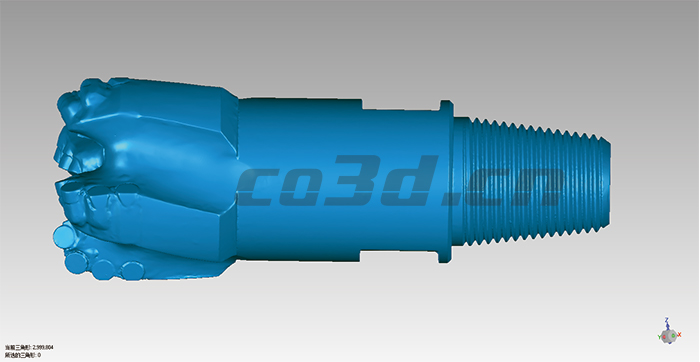

STL data chart of oil drill bit

Import and scan the sample data on the 3D inspection software, which can be compared and analyzed with the original digital model to generate a simple and easy-to-understand data report. The sample details are scanned well, and the degree of wear of the petroleum brick tooth surface can be clearly compared to the customer Provide high-precision data solutions. The scanner is convenient and simple to use, can be operated by one person, and has high working efficiency. The customer is very satisfied with our 3D scanner.

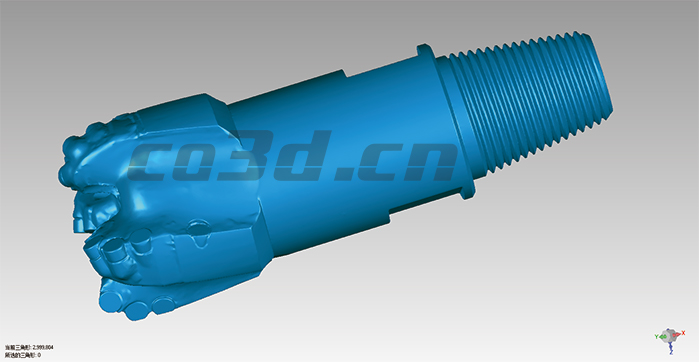

STL data chart of oil drill bit

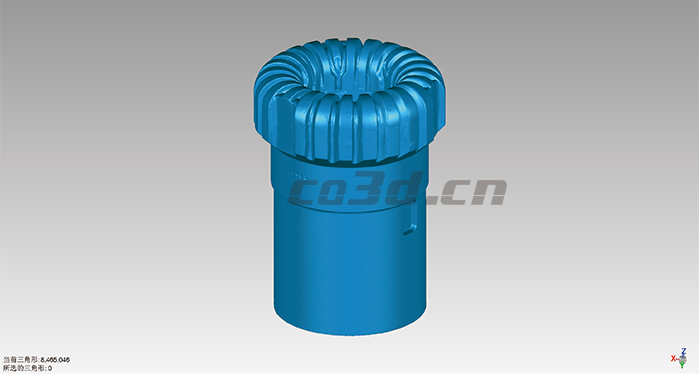

STL data chart of oil drill bit
