Reverse design of car body 3D scanning

The development of automobiles is a long process. After continuous improvement, innovation, and higher requirements, it has become a transportation tool with multiple types and specifications that is widely used in various fields of social and economic life. Automobiles have developed and changed rapidly in terms of appearance, performance and color. In every period of the evolution of automobile shapes, new models of automobiles have been continuously developed. In addition to the improvement of automobile performance, automobile aesthetics is also developing. The car body protects safety and constitutes a good aerodynamic environment. A good car body not only brings better performance, but also reflects the personality of the owner. The body shape is relatively large, and it is necessary to use a three-dimensional scanner for scanning and testing to obtain accurate data to meet customer needs.

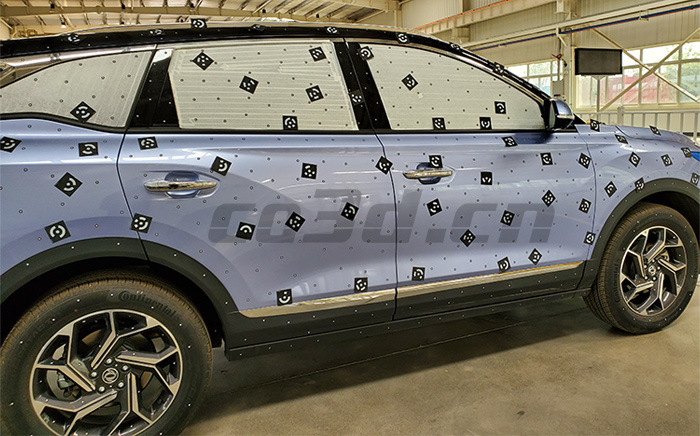

Car scene scan

Face problems

The car body has a large shape, a large curved surface, and the body structure contains many parts. The scanning processing requirements for each detail are high, and the scanning accuracy is also high. The data needs to be reversed later. Therefore, relying on manual measurement to obtain data is very difficult, takes a lot of time, and cannot guarantee data integrity and accuracy.

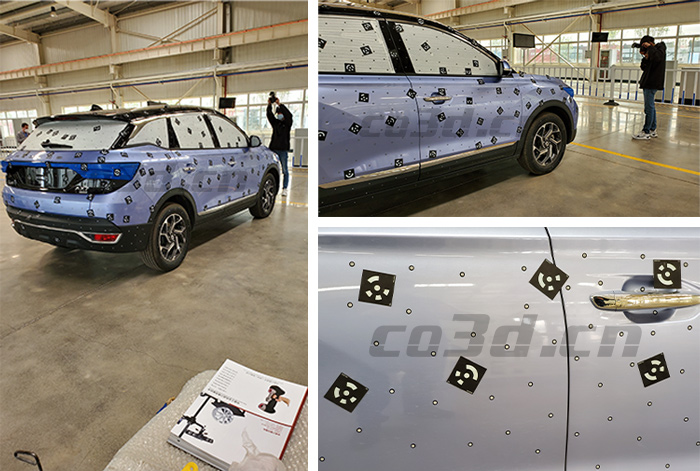

Car scene scan

Solution

After understanding the customer's needs and scanning objects, the solution is to use: the handheld 3D scanner HOLON751 and the 3D photogrammetric system 3DP.

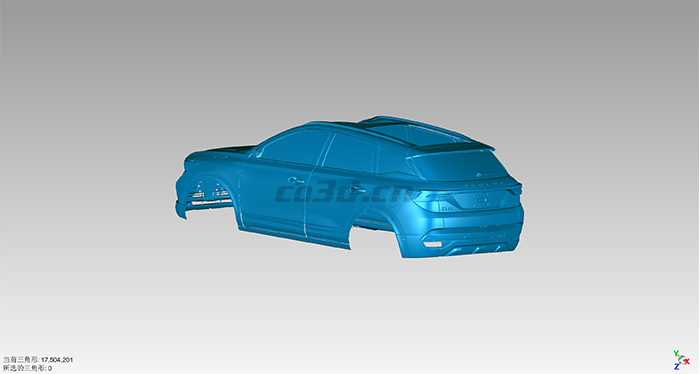

Automotive STL data graph

First, paste code points and mark points on the scanned object. Use the three-dimensional photogrammetry system HL-3DP to take multiple pictures of the measured object from different angles. Through the three-dimensional distance measurement method, the HOLON3DP software automatically calculates the three-dimensional coordinates of the mark points and object feature points in the digital picture, which can improve the three-dimensional scanner Overall point cloud stitching accuracy.

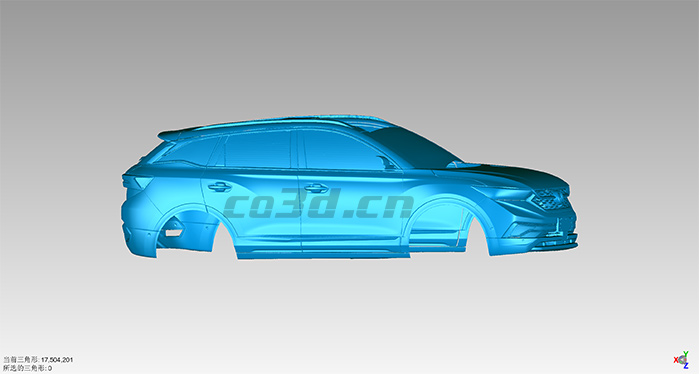

Automotive STL data graph

Import the 3D coordinate data of the car body into the scanning system, and use the handheld 3D scanner HOLON751 to quickly scan the car body in multiple directions and multiple angles to obtain high-precision 3D scan data. The handheld 3D scanner is flexible and convenient to operate, movable scanning, fast scanning speed, high precision, strong stability, and improves work efficiency. The scanner has a fine mode, which can clearly scan and reflect local small features. Use the acquired three-dimensional data to build a three-dimensional digital model to achieve the data that the customer wants to obtain, which is convenient for later design and development.

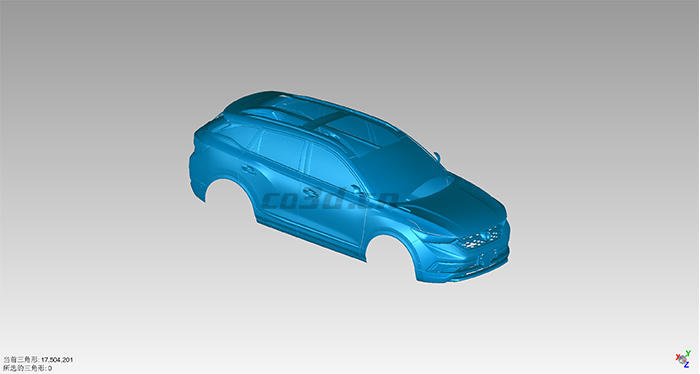

Automotive STL data graph

Summary: For the 3D measurement of super large objects, the use of a 3D photogrammetry system with a 3D scanner can reduce the cumulative error of 3D scanning data splicing and improve data accuracy. The data obtained has high accuracy and good detail scanning, which can meet customer requirements and can be used in later work to speed up the progress of the project.
