Car steering wheel reverse scan

The steering wheel of a car is mainly used to control the direction. As a safety part, it plays a key role in the safety of vehicles and people. It is a very important part in a car. With the continuous development of automobiles, the steering wheel must also be improved to improve the safety performance of the car. The steering wheel is generally made of magnesium aluminum alloy, which is light in weight, easy to operate and has good performance indicators. Automobile manufacturers want to research and develop cars, so they use 3D scanning technology to improve steering wheel scanning.

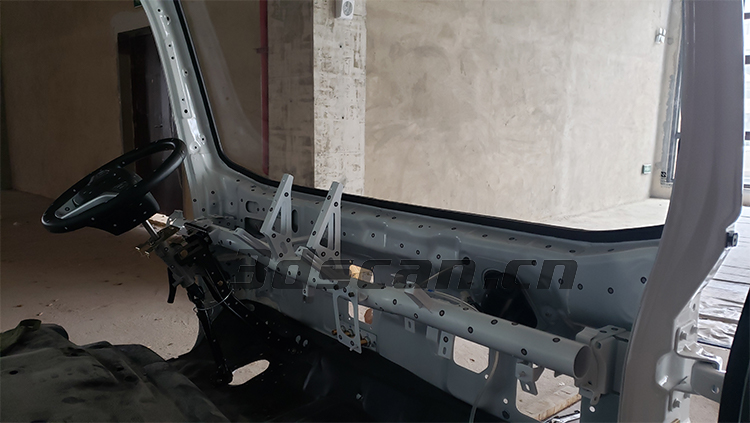

Car steering wheel live shot

Practical problems

The steering wheel of a car contains a turntable and a joystick. Generally speaking, the shape is more complicated and irregular, and there are some protruding places. This also easily forms an included angle, which increases scanning difficulty.

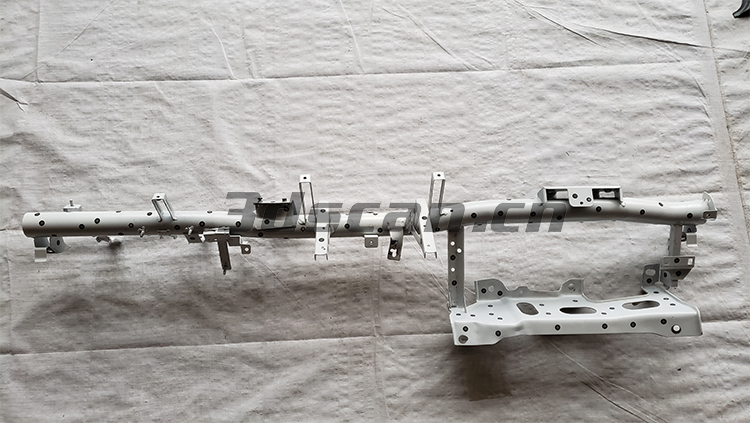

Car steering wheel live shot

For customers who want car development, the scanned data must have high accuracy, fast speed, easy operation, and improve work efficiency.

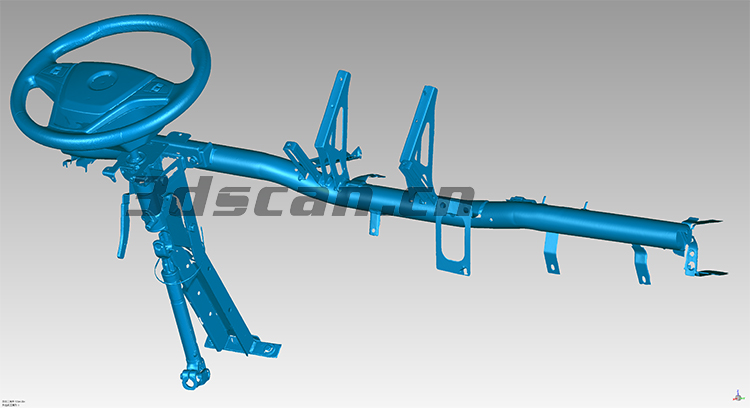

Car steering wheel STL data map

Co3d solutions

After understanding the customer's needs and requirements, our company proposes a suitable solution is the use of a handheld 3D scanner HOLON751. This device is handheld, easy to use, and flexible for scanning. In addition, the device has fast scanning speed, high accuracy, and strong stability. It can also switch a single laser scanning mode, which is suitable for scanning deep holes and dead corners. It can solve the problem of angles existing by customers. The scanned data can be compared with the original data to obtain an analysis report.

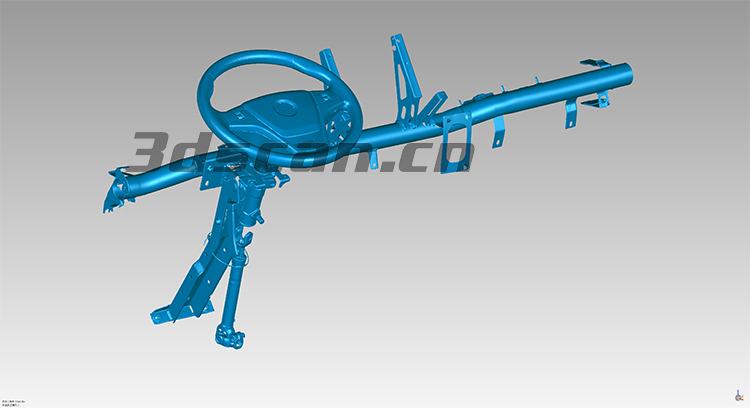

Car steering wheel STL data map

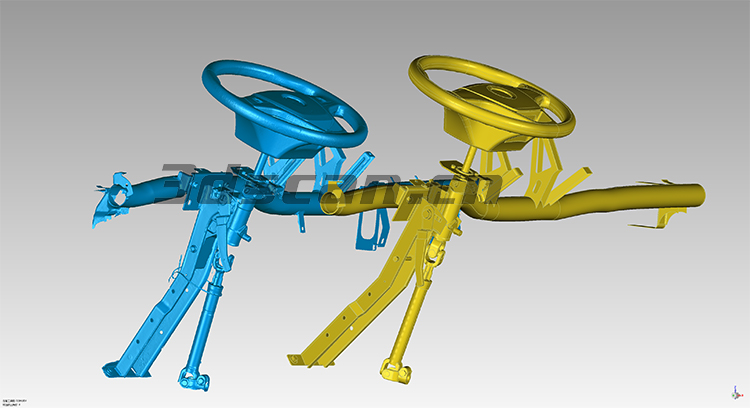

Car steering wheel reverse design
