Auto stamping parts

Automotive stampings are metal stampings that make up automotive parts and can be directly turned into automotive parts. According to the types and characteristics of automotive stamping parts, different metal materials need to be selected for production to ensure product quality and save materials, and the process design reduces impact. An automobile customer needs to scan the stamping parts of automobile molds comprehensively, obtain the data to form an effect map, so as to facilitate the later production.

Auto mold scan scene

Practical problems

1. Scanning automotive parts stamping parts provided by the customer has a complicated structure, many surface details and features, with holes, which brings certain difficulties to the scanning work as a whole.

2. The surface of the stamped part is reflective, and the customer cannot spray the developer. The required scanning effect is good. The acquired data has high accuracy and can play a great effect in the later use.

Auto mold scan scene

Co3d solutions

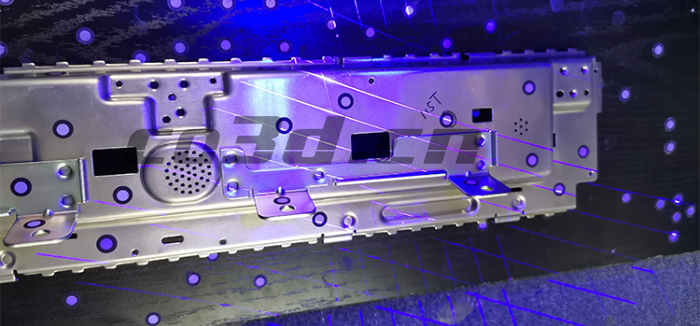

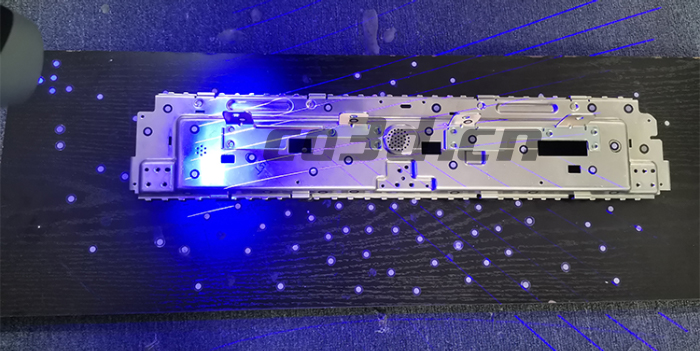

At the early stage, firstly affix the corresponding number of marking points to the stamping part, and then use the handheld 3D scanner 751 with fine mode to perform a comprehensive scan of the sample. Switching a single laser scanner can be used to scan deep holes and dead corners, which is beneficial to solve the details Difficulty. The first is to scan one side of the complete stamped part. Then scan the other side in turn, the data can be automatically spliced according to the landmarks, improving work efficiency. The scanned data has high accuracy.

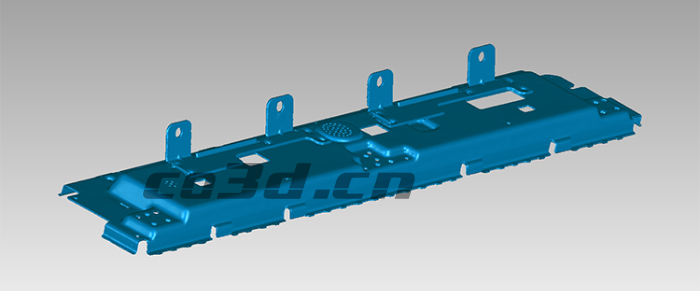

STL data chart of automotive die stamping parts

The hand-held scanner is flexible in operation, can change the angle to scan in many directions, and captures fast. The scanned data is imported into the 3D software for data processing, and the data format required by the customer can be exported so that the customer can use the software to make the design. Customers are very satisfied with our scanned data, the data is highly accurate and can be applied to the renderings of the later design.

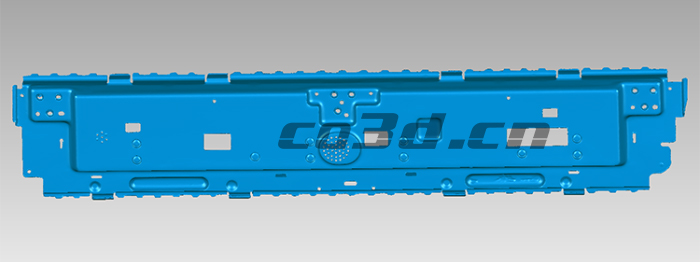

STL data chart of automotive die stamping parts

STL data chart of automotive die stamping parts
