3D inspection of engine chassis

The engine is a machine that can convert other forms of energy into mechanical energy and plays a great role. The customer wants to perform three-dimensional scanning and inspection of the engine chassis, abandon the traditional three-dimensional scanning method, use advanced three-dimensional measurement technology to obtain high-precision three-dimensional scanning data, and make technical improvements or better improve engine functions Out of better quality.

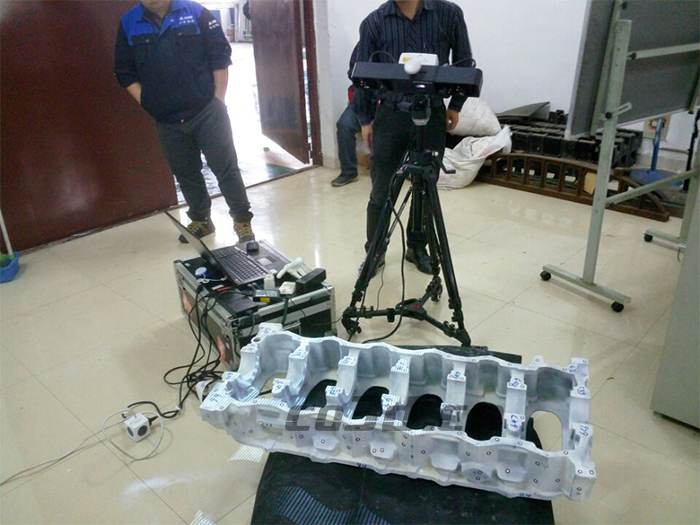

Engine chassis scan scene

Practical problems

Customers need to obtain complete high-precision data for later comparison testing. The engine chassis is bulky, the overall structure is irregular, uneven, and it is easy to produce dead angles, which makes scanning difficult.

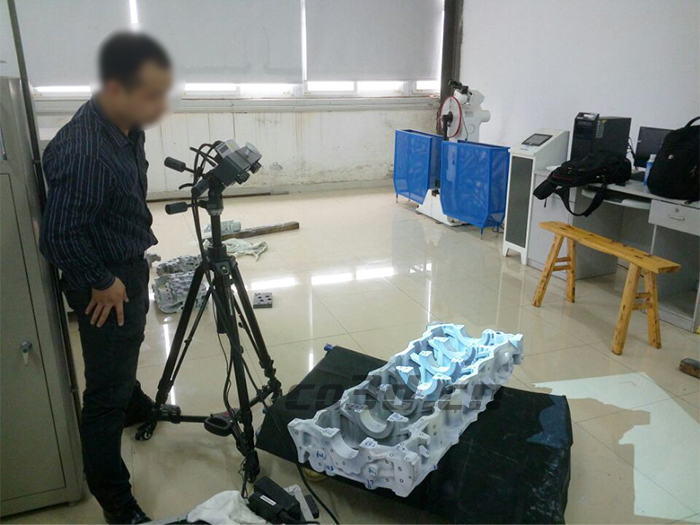

Engine chassis scan scene

The traditional scanning method has limitations and is not suitable for scanning this workpiece. The acquired data is incomplete and the accuracy cannot meet the customer's requirements. Therefore, it is necessary to abandon the traditional method and adopt advanced measurement technology.

Co3d solutions

After communicating with the customer, after understanding all aspects, our engineers use HL-3DS + to scan. First, attach positioning points on the workpiece to facilitate stitching, and then use the 3D scanner to scan the workpiece quickly and comprehensively to obtain high-precision 3D data. Compatible with photogrammetry system, high precision, easy to carry, easy to operate and quick to use.

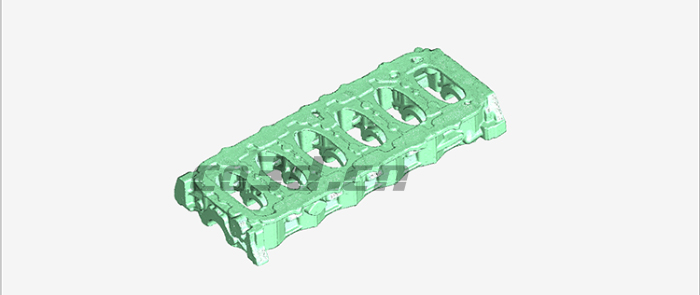

Engine chassis point cloud data map

The acquired 3D data is imported into a 3D software system for processing and comparative analysis. The analysis report is easy to understand, and customers can intuitively know the problems of the workpiece. The overall scanning speed of the scanner is fast, the data is complete, and the detail processing effect is satisfactory to the customer. It can provide the customer with a complete and reliable data, which can be used in later work to meet the customer's needs.

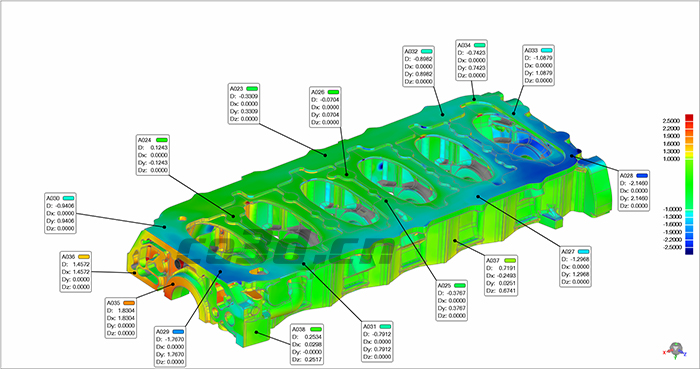

3D data chart of engine chassis

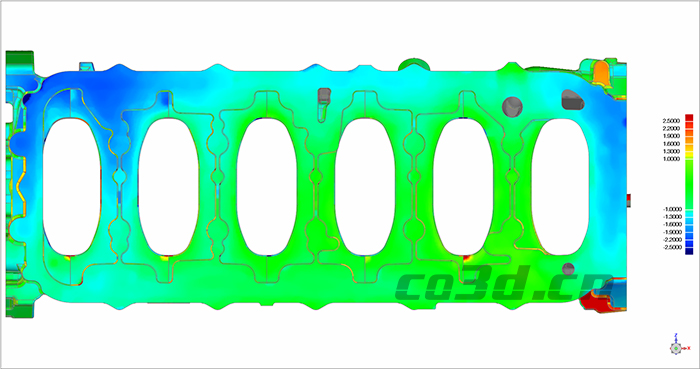

3D data chart of engine chassis

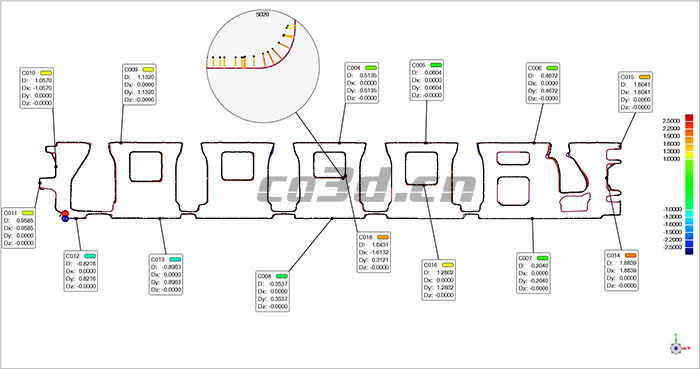

2D cross section of the engine chassis
