Hard hat reverse design

A hard hat refers to a hat that protects a person's head from damage caused by falling objects and other specific factors, and is composed of a shell, a cap lining, a chin strap, and accessories. Each helmet has certain technical performance and scope of application. As a safety protection, it has great requirements on the quality of the materials used and the rationality of the design. Manufacturers require scanning helmets to do reverse modeling and make corresponding changes to design improvements.

Hard hat scanning scene

Practical problems

The helmet shell has a large radian and holes around it. It is not accurate enough to obtain data using traditional scanning methods. It is impossible to perform a complete measurement of the curvature of the surface, so it cannot be detected, and it cannot be reverse modeled later.

Hard hat scanning scene

Customers require fast time, high data integrity and accuracy, and the data is well used in later work.

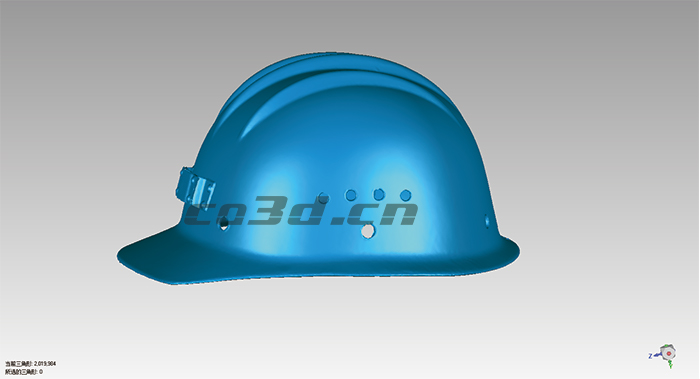

Hard hat STL data graph

Co3d solution

In order to solve customer problems well, provide efficient solutions. Use our handheld 3D scanner HOLON751 to scan the helmet at different angles and different positions. The scanning speed is fast, the accuracy is high, and the stability is strong. The operation process is flexible and convenient, and can be used in various scenarios. Visualization, you can see what else needs to be scanned during the operation, improve work efficiency and speed up scanning.

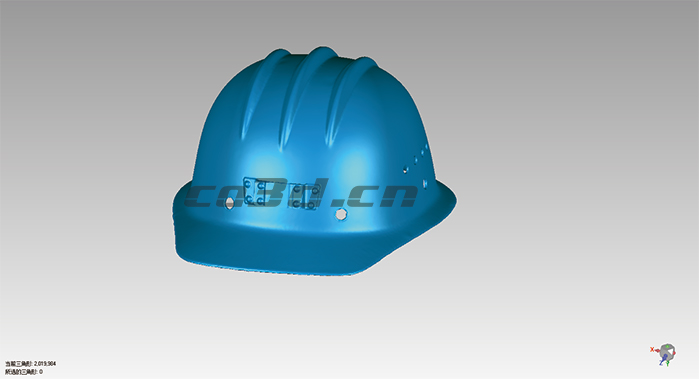

Hard hat STL data graph

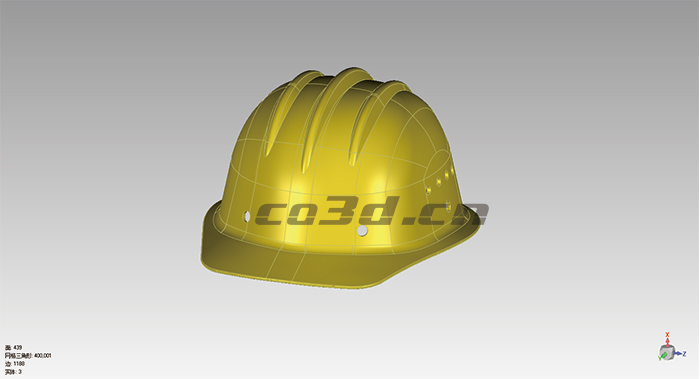

Hard hat reverse design

Import the scanned data into the 3D software, and perform reverse modeling on the data according to the customer's requirements. The customer is very satisfied with obtaining the reverse data, and the data accuracy is high and complete, which can help the later design and production.

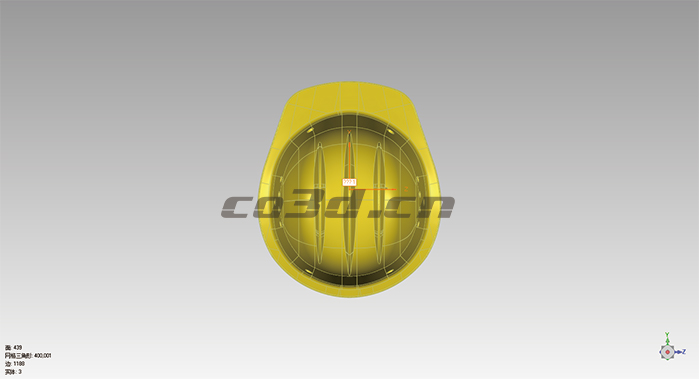

Hard hat reverse design
