The central air conditioning heat exchanger is a new type of high-efficiency heat exchanger that is stacked by a series of metal sheets with a certain corrugated shape. Elongated rectangular channels are formed between each plate, and heat is exchanged through the plates. Plate heat exchanger is an ideal equipment for heat exchange between liquid and liquid, liquid and steam.

Central air conditioning heat exchange plate scanning site

        As a key part of the heat exchange system in the air-conditioning heat exchanger, the heat exchange plate needs to form a stable and sealed system during the long-term heat exchange process. In order to ensure stable heat exchange during the operation of the heat exchange plate, the manufacturer needs to complete the heat exchange plate in a short time. Batch testing.

Central air conditioning heat exchange plate scanning site

        Advanced three-dimensional measurement technology is used to scan the heat exchange plate to quickly obtain high-precision three-dimensional data of the heat exchange plate. The precision mode supplements data for grooves on the surface that are difficult to measure. The handheld 3D scanner Model 37 took 8 minutes in total, with an accuracy of 0.02mm. The high-precision 3D data provided stable data support for subsequent inspections, speeding up the inspection progress of the heat exchange plate and reducing time costs.

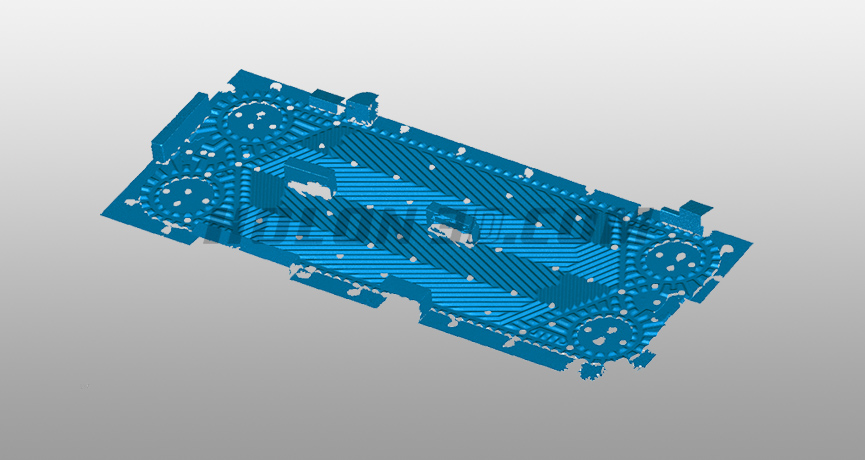

Central air conditioning heat exchange plate STL data chart

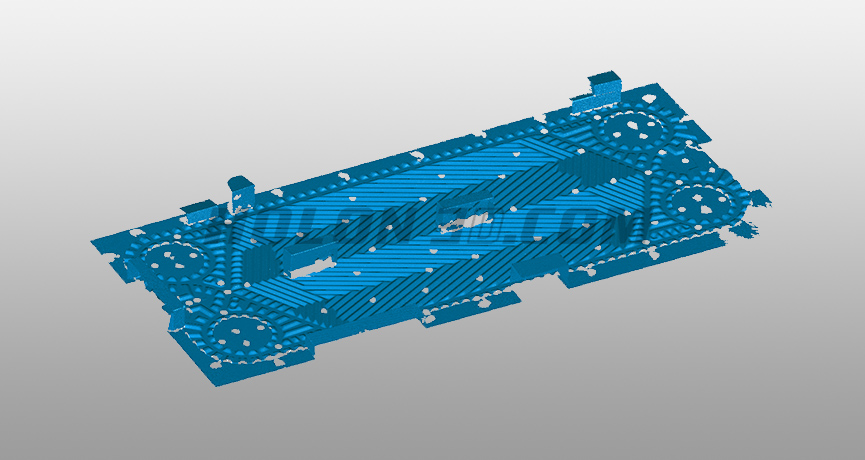

Central air conditioning heat exchange plate STL data chart
