Carved products are quickly produced using 3D scanning technology

There are many kinds of sculptures with a long history and superb skills, and the workmanship is very fine. The image and space treatment methods will be gradually but artistically created by hand. The amount of engineering is large, it takes a long time, and the progress is slow. Technical methods to speed up production efficiency.

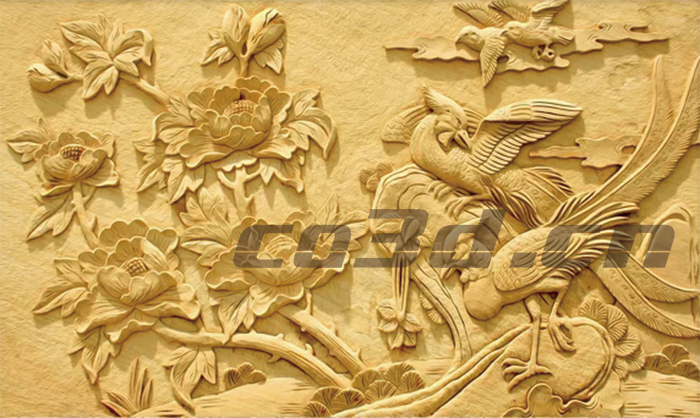

Wood carving real shot

Practical problems

The picture on the wood carving is clear and natural, reflecting the beauty of the carving. The picture has many details and irregular bumps. Therefore, it has high requirements on the use of scanning equipment and can highly restore the engraved picture. It is difficult to grasp the details in the subsequent engraving production. It takes a long time and it is difficult to do.

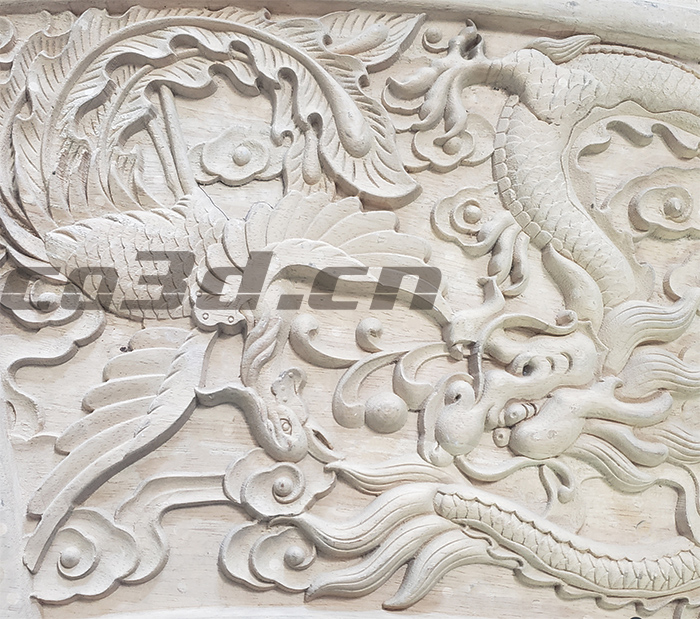

Real shot of wood carving scene

Co3d solution

The scanning device used is the Hualong 3D handheld 3D scanner HOLON751, which has a fast scanning speed, a data acquisition accuracy of up to 0.02mm, strong stability, simple operation, and is compact and easy to carry. It has a precision mode, which is suitable for scanning detailed features and can be realized obviously.

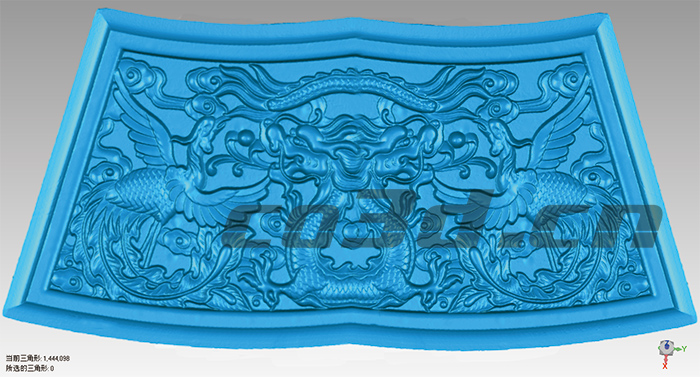

Wood carving STL data chart

The hand-held three-dimensional scanner HOLON751 quickly scans all directions of engraving, and accurately obtains high-precision three-dimensional data on the screen. The detail scanning effect is good and the picture is realistic. And it is non-contact scanning, which will not cause damage. It can also provide reliable data parameters for subsequent design and production, which greatly improves work efficiency and greatly helps.

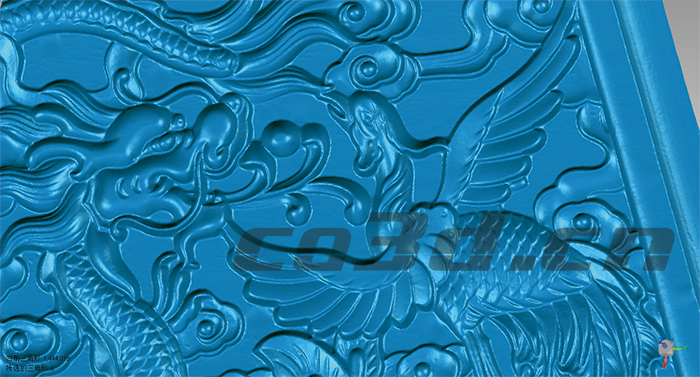

Wood carving details show STL data chart

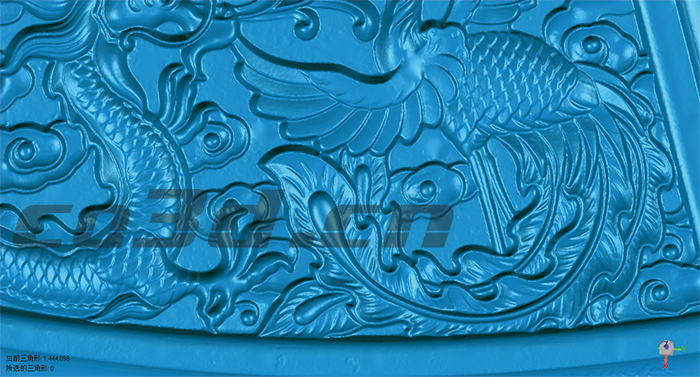

Wood carving details show STL data chart
