Application of 3D scanner in furniture

Furniture has also continued to develop and innovate following the footsteps of the times. Up to now, there are many categories, different materials, complete varieties, and different uses. It is an iportant foundation for establishing a working and living space. Furniture is designed and manufactured to meet people's material needs and usage purposes, so factors such as function, appearance, and structure are very important. In order to adapt to changes in market demand and the changing concept of life, we prefer to choose those with higher functionality. As the market changes, customers must also make changes.

Scanning scene of chair

Scanning scene of stool

Practical problems

The customer provides several different furniture scans, with carved patterns on the surface of the furniture, more details, and a curved surface design with different characteristics, which has high requirements for scanning. Using traditional scanning methods, detailed feature scanning is very difficult, takes a long time, and the data obtained may not be complete. Using a new type of scanning equipment can solve problems quickly and easily.

Furniture scanning scene map

Co3d solution

Huaguang 3D engineering technicians brought the new 3D scanner HOLON751 device to the customer site to do a scanning demonstration. Use a handheld 3D scanner to scan the furniture in all directions to obtain high-precision data through the identification points. This scanner has fast scanning speed, high accuracy, strong stability, and flexible and convenient operation process. It has a fine mode, which is suitable for scanning objects with engraved patterns, and accurately scans the details and features. It is compact and easy to carry.

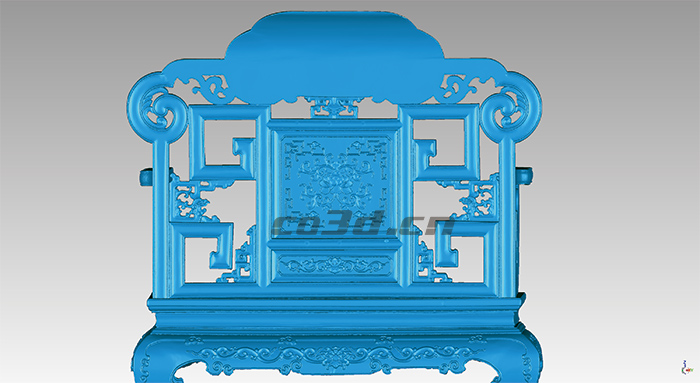

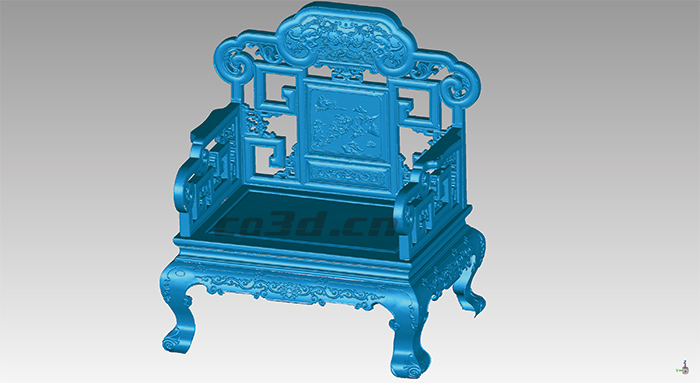

Chair STL data chart

Chair STL data chart

The scanned data is imported into the software for processing optimization, reverse modeling, and secondary development can be carried out, according to the scan data to make corresponding transformations, enhance various functions, and provide solutions to customers.

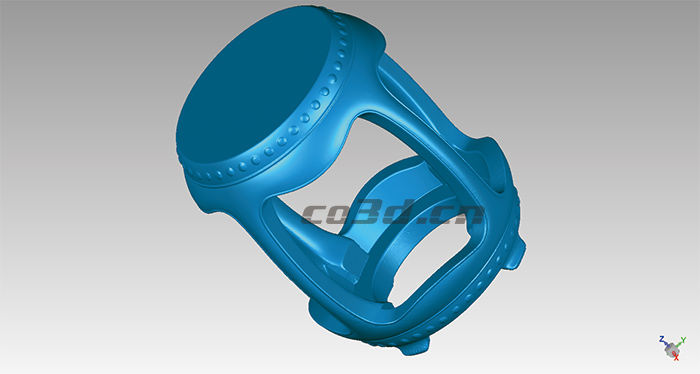

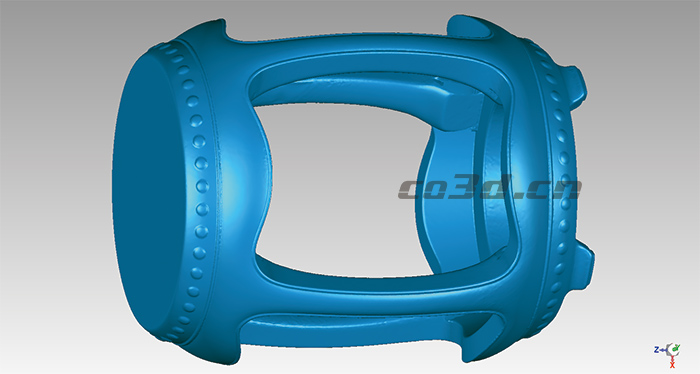

STL data chart of stool

STL data chart of stool
