Sewage treatment pumps are also called water treatment equipment. Water is an indispensable natural resource for human development and the material basis for the survival of humans and all living things. In today's world, the water crisis caused by insufficient water resources and pollution has become a complex problem faced by any country in terms of policy, economy and technology, and a major constraint on social and economic development.

        The client is a well-known modern manufacturing enterprise dedicated to the development, design and production of corrosion-resistant pumps. The customer needs to conduct 3D scanning of the acid-base sewage treatment equipment to quickly obtain 3D data for product reverse design and new product development. Due to condition restrictions (requiring fast scanning speed, high accuracy and no powder spraying), it is difficult to compare several 3D data on the market. After scanning, the customer finally chose Hualang 3D.

         Customer background: Large domestic water treatment equipment manufacturer

         Scanning requirements: Obtain three-dimensional data of samples for new product development

         Sample introduction: acid-base sewage treatment equipment components (water pump housing)

Sewage treatment equipment pump shell site

        Customers need to quickly and accurately obtain three-dimensional data of the pump casing of sewage treatment equipment for the design and development of new water pumps. Due to the irregular shape of the pump casing and the large number of grooves and holes on its surface, the design department has been using traditional methods. Low efficiency can no longer satisfy the rapidly developing business environment and puts pressure on companies to launch new products at a faster pace.

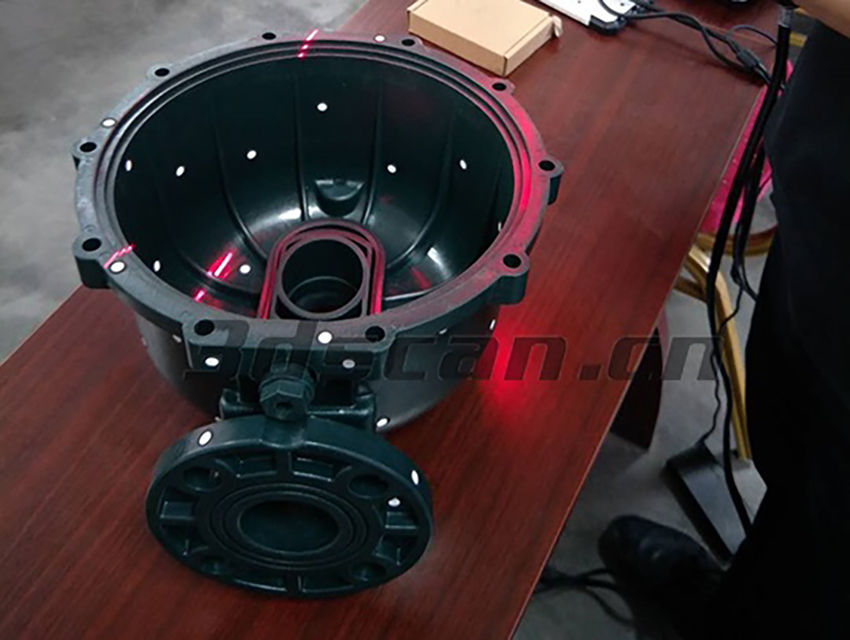

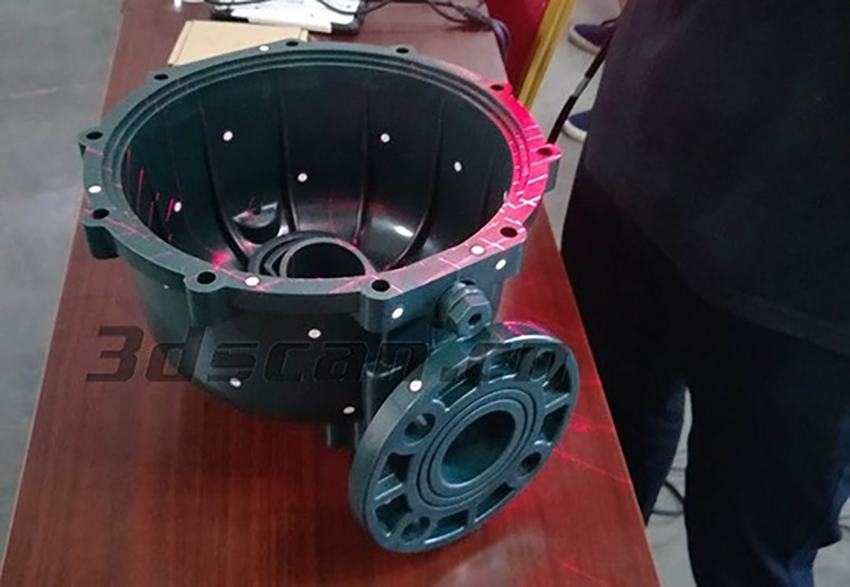

Sewage treatment equipment pump casing scanning site

Scanning device：

        Handheld 3D scanner Model 41

Based on the problems faced by customers, our company Hualang 3D provides a practical scanning solution: using the handheld 3D scanner VX700 to quickly obtain the 3D data of the pump casing of sewage treatment equipment, which not only has high scanning accuracy and fast speed, but also meets customer requirements and cannot be spray-painted. Image agent, the customer was very satisfied with the scan results.

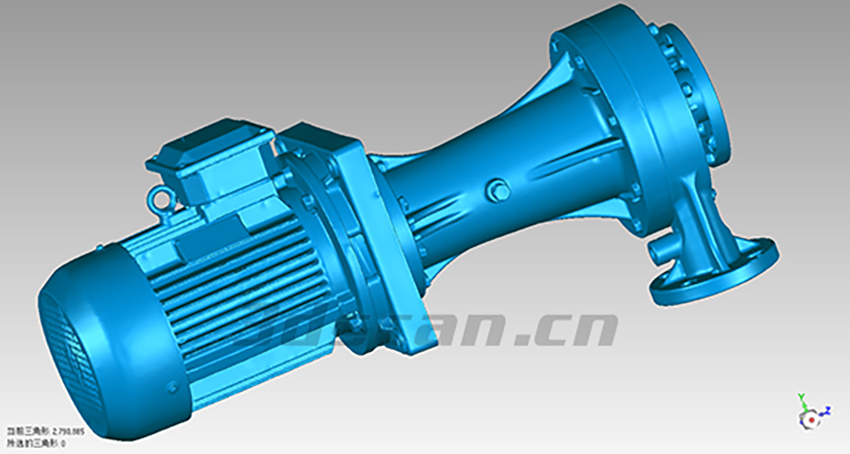

Pump shell STL three-dimensional data chart

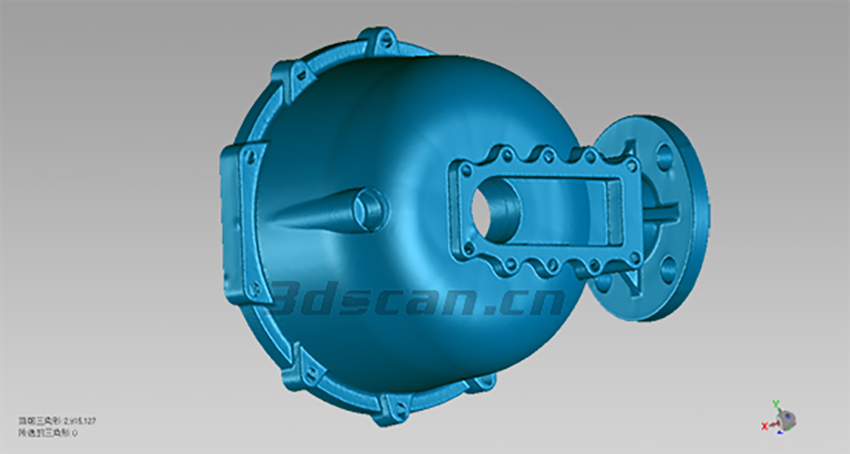

Pump shell STL three-dimensional data chart

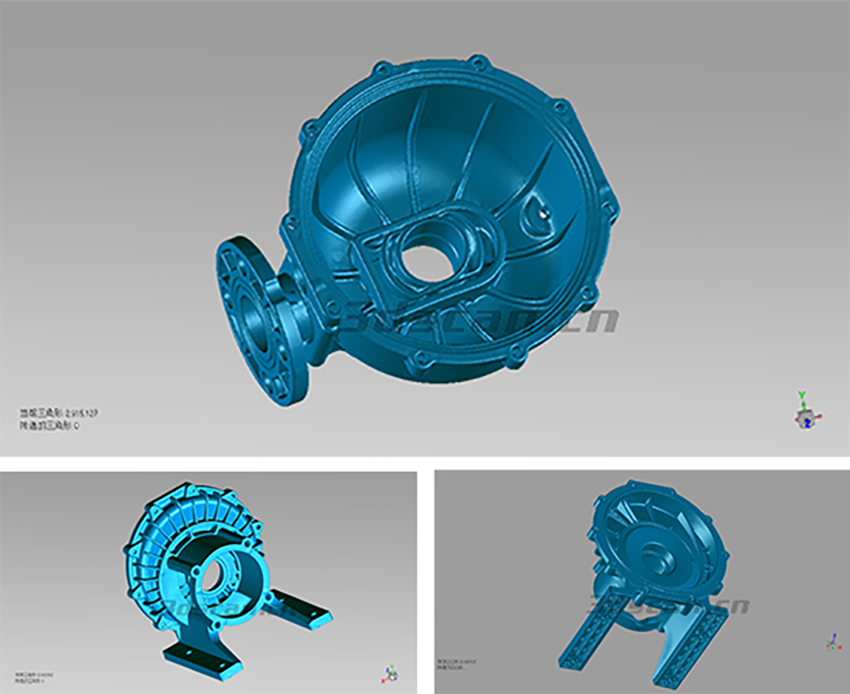

Pump shell STL three-dimensional data chart

Summary

         Using the HOLON3D handheld laser 3D scanner VX700 to scan the water pump casing, there is no need to consider too much environmental conditions and the powder spraying of the object being measured. The scanning speed is fast, and the overall 3D data acquisition is smooth and complete. It can be moved and scanned freely. It is simple to operate and easy to carry. It is more in line with customer needs and gives customers a better operating experience.
